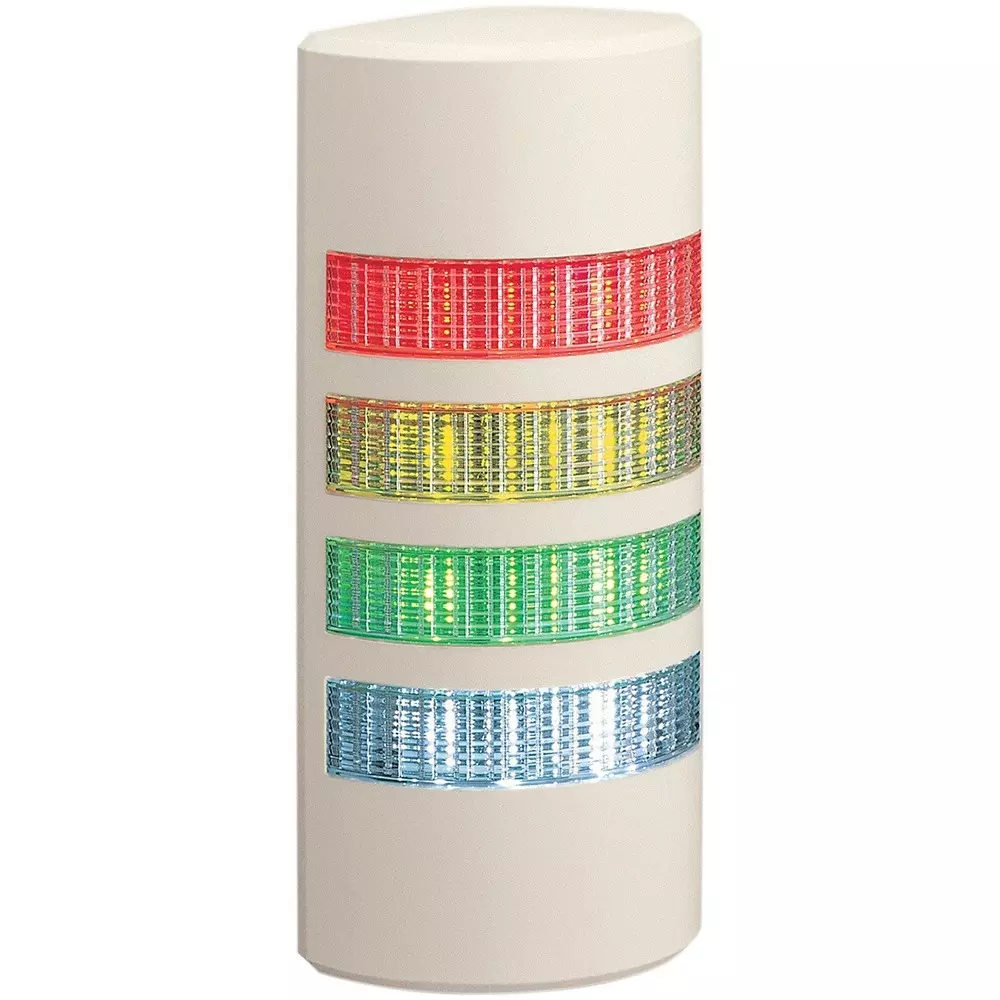

| Model No | WEP-402FB-RYGC |
| Light Source | LED |
| Protection Class | IP54 |
| Type of Product | Multilayer Signal Light |
Model No |
WEP-402FB-RYGC |
Light Source |
LED |
Protection Class |
IP54 |
Type of Product |
Multilayer Signal Light |
Material |
Globe: Polycarbonate lens |
Country of Origin |
Japan |
Standard |
CE marking, UL standard |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
No. of Tiers |
4 |
Operating Temperature Range |
-10 to +55℃ |
Import Country |
Direct Import from Japan |
Monotaro ID |
8552923 |
Rated Voltage (V) |
AC/DC24 |
Power Consumption (W) |
3.2 |
Outer Diameter (Φmm) |
90x37.5 |
Mass (Kg) |
0.35 |
Specifications |
Chrome plating specification |
Interface |
Open collector |
Sound Pressure |
90 dB/m (max) |
Nominal Sectional Area (mm²) |
0.3 |
Line Type |
UL1007 |
Lead Wire Length (mm) |
1000 |
Correction |
Lighting |
Insulation Resistance (MOhm) |
1 or more between charging and non-charging parts at DC500V megger |
Operating Voltage Range (V) |
AC/DC 21.6 to 26.4 |
Vibration Resistance (m/s²) |
19.6 30 Hz JIS C 0911 |
