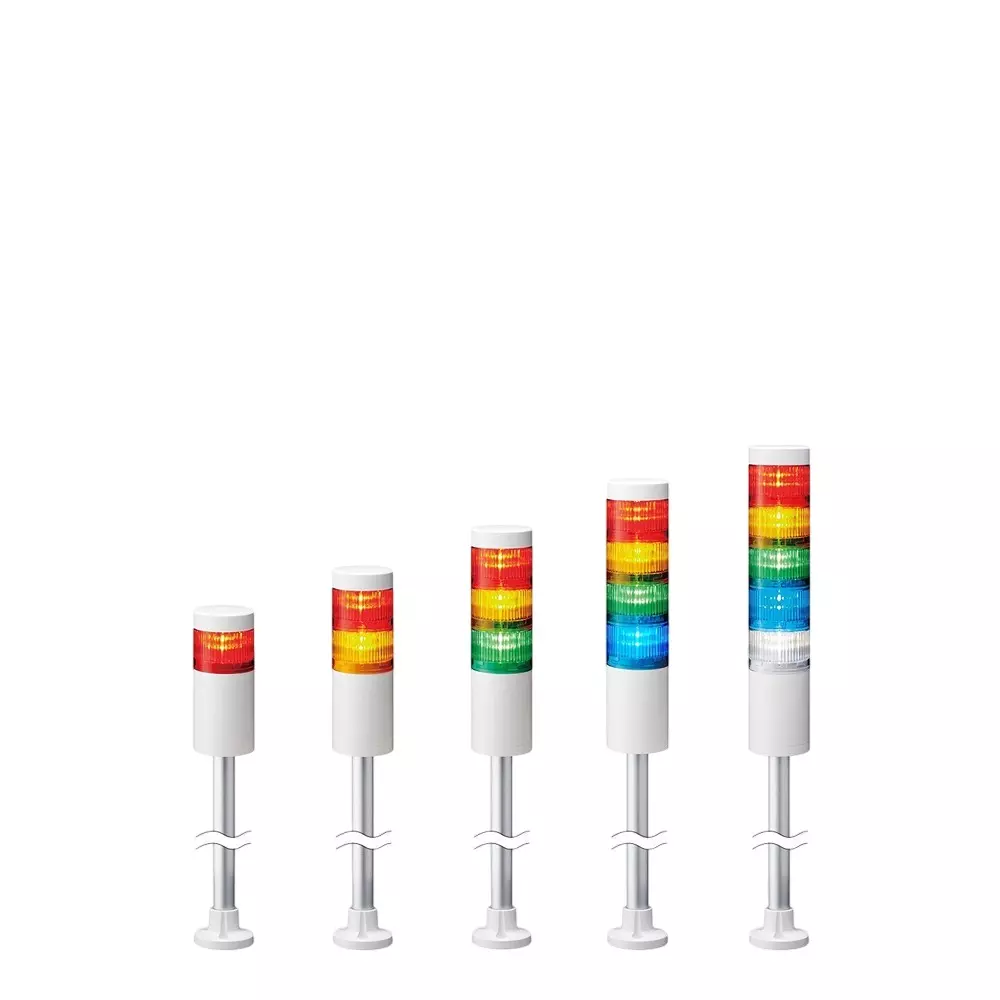

| Type | Stacked signal lights |
| Model No | LR6-202PJBA-RG |
| Light Source | LED |
| Protection Class | IP65 (IEC 60529), IP54 (IEC 60529), NEMA TYPE 4x, 13 Environmental conditions: When installed in upright position |
Type |
Stacked signal lights |
Model No |
LR6-202PJBA-RG |
Light Source |
LED |
Protection Class |
IP65 (IEC 60529), IP54 (IEC 60529), NEMA TYPE 4x, 13 Environmental conditions: When installed in upright position |
Type of Product |
Multilayer Signal Light Signal Tower |
Material |
ABS, AS |
Country of Origin |
Japan |
LED Color |
Red-green |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
No. of Tiers |
2 |
Import Country |
Direct Import from Japan |
Monotaro ID |
29213285 |
Rated Voltage (V) |
DC 24 |
Connection Method |
Cab tire cord |
Dimension (Φmm) |
60 |
Action Type |
Lights up, flashes, beeps |
Power Consumption (W) |
3.9 |
Outer Diameter (Φmm) |
60 |
Rated Power Consumption (W) |
[Standard] LED unit of each color: 1, buzzer unit: 1, [Maximum] LED unit of each color: 1.3, buzzer unit: 1.3 |
Mass (Kg) |
0.57999999999999996 |
Conform to |
NPN/PNP |
Rated Voltage (DC) |
24 V DC |
Applicable Standard |
EMC Directive (EN61000-6-4, EN61000-6-2), RoHS Directive (EN50581), UL508, CSA-C22.2 No.14, KC (KN61000-6-4, KN61000-6-2), FCC Part15 SubpartB Class A |
Type of Sign |
Pole mounting + circular bracket |
Location |
Indoor |
