| Model No | RT-100C-G |
| Protection Class | IP23 |
| Color | Green |

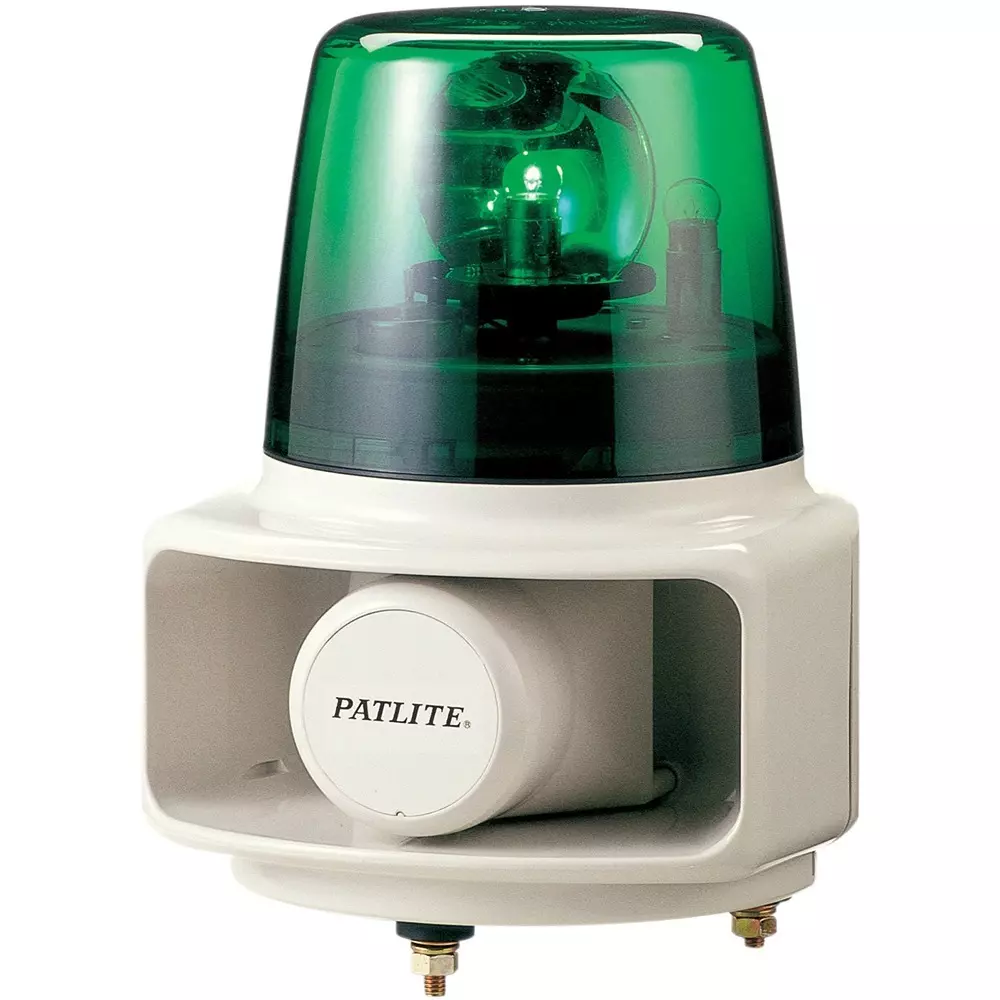

| Type of Product | Horn Speaker Integrated Multi Electronic Sound Revolving Light |
Model No |
RT-100C-G |
Protection Class |
IP23 |
Color |
Green |
Type of Product |
Horn Speaker Integrated Multi Electronic Sound Revolving Light |
Input Type |
No-voltage contact input (9 points, 1 bit) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Operating Temperature Range |
-20 to +50℃ (85% or less humidity) |
Tone |
C type |
Import Country |
Direct Import from Japan |
Monotaro ID |
85915873 |
Rated Voltage (V) |
AC100 |
Power Consumption (W) |
32 |
Outer Diameter (Φmm) |
162 |
Mass (Kg) |
2.5 |
Playback Channel |
8 (bit input), 32 (binary input) |
Sound Pressure Level (dB) |
Up to 105 (at 1m) |
Light Bulb (W) |
12 V 15 W |
Nominal Sectional Area (mm²) |
Power line: 0.75, signal line: 0.3 |
Allowable Voltage Range |
AC 90 to 110 V |
Contact Capacity |
More than 10 mA |
Number of Flashes (min-1 [times/min]) |
105 |
Light Bulb |
54 |
Line Type |
Power line: VCTF, Signal line: CKVV |
Lead Wire Length (mm) |
Power line: 320, signal line: 300 |
