| Material | High Strength Aluminum Alloy |
| Type of Product | Super Torque Timing Pulley |
| Model No | P18S5M0150-AAL |
| Shape | A Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
High Strength Aluminum Alloy |
Type of Product |
Super Torque Timing Pulley |
Model No |
P18S5M0150-AAL |
Shape |
A Type |
Country of Origin |
Japan |
Nominal Width (mm) |
150 mm |
Product Type |
Timing Pulley |

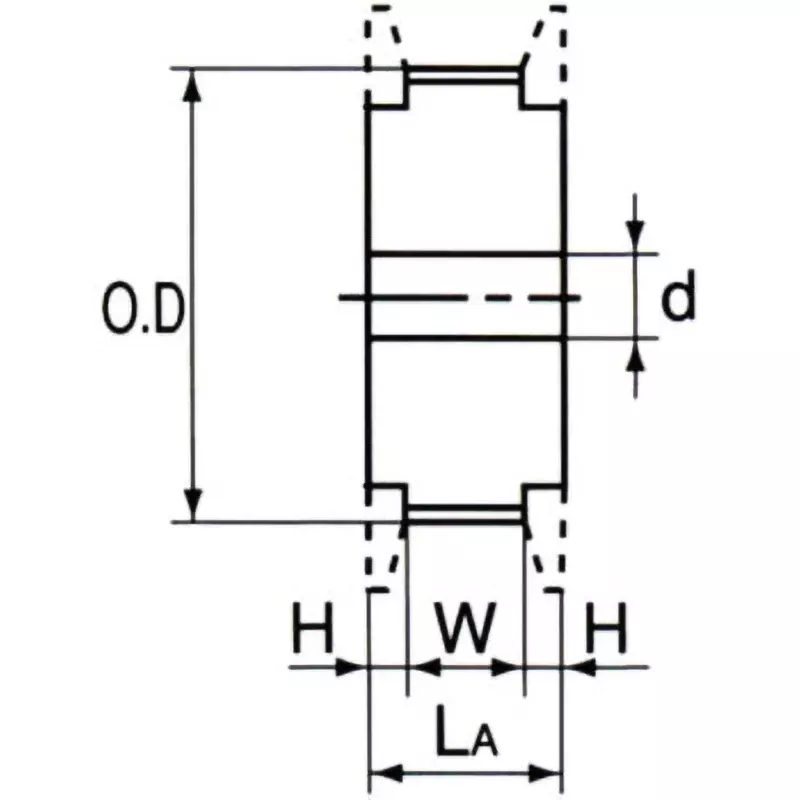

Dimension LA (mm) |
22 mm |
Monotaro ID |
35272212 |

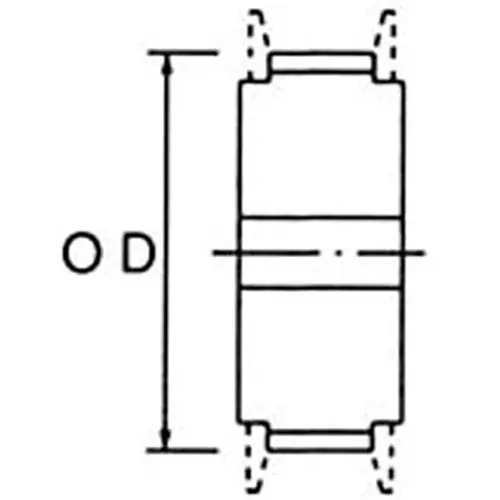

Outer Diameter (Φmm) |
27.69 mm |
Pitch Diameter (Φmm) |
28.65 mm |
Shaft Hole Diameter d (mm) |
(min) 7 mm / (max) 12 mm |
Suitable Flange |
F-103322 |
Suitable Belt Width (mm) |
15 mm |
Compatible Belt |
S5M |
Tooth width W (mm) |
17 mm |
No. of Teeth |
18 |
Dimension H |
2.5 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
