| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 60S5M250B |
| Shape | B Type |
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
60S5M250B |
Shape |
B Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

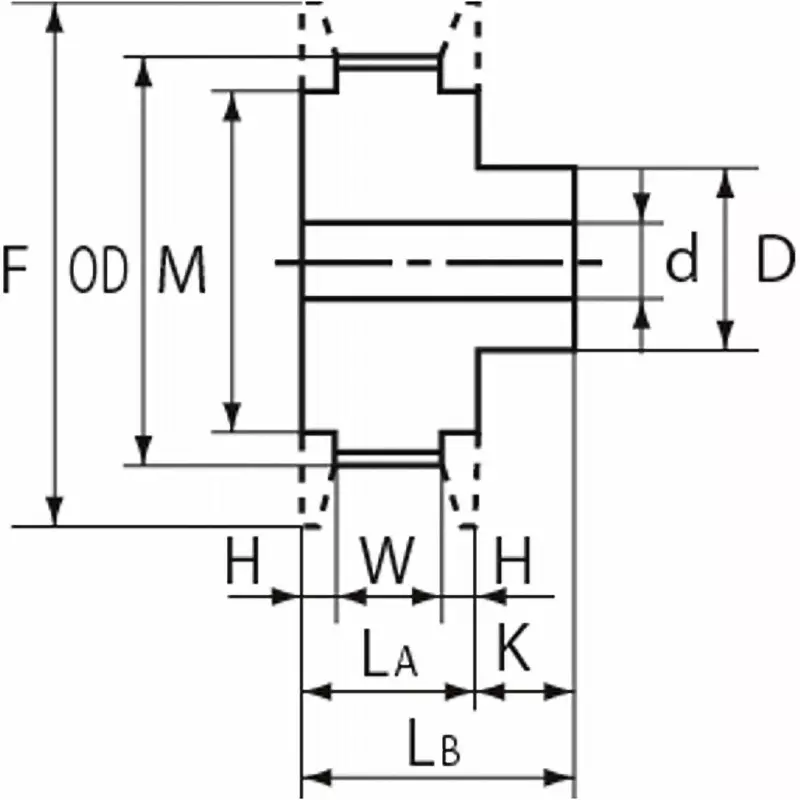

Dimension LA (mm) |
32 mm |
Monotaro ID |
47912331 |
Pitch Diameter (Φmm) |
95.49 mm |
Shaft Hole Diameter d (mm) |
12 mm |
Suitable Flange |
F-169978 |
Compatible Belt |
S5M |
No. of Teeth |
60 |
Dimension H |
2.5 mm |
Dimension LB (mm) |
44 mm |
Dimension K |
12 mm |
Nominal Width |
25 mm |
Mass |
2.07 Kg |
Maximum shaft hole diameter d (Φmm) |
54 mm |
Dimension W |
27 mm |
Applicable flange outer diameter D (mm) |
99 mm |

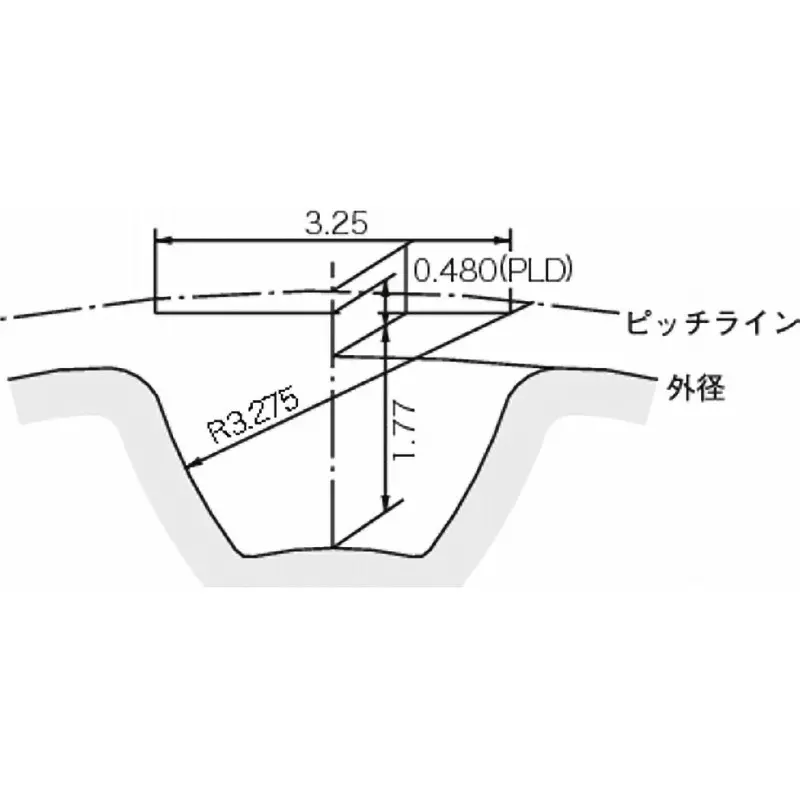

Tooth Type |
S5M |
Cell Spacing (mm) |
5 mm |
Dimension d |
75 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
