| Material | Steel |
| Type of Product | Super Torque Timing Pulley |

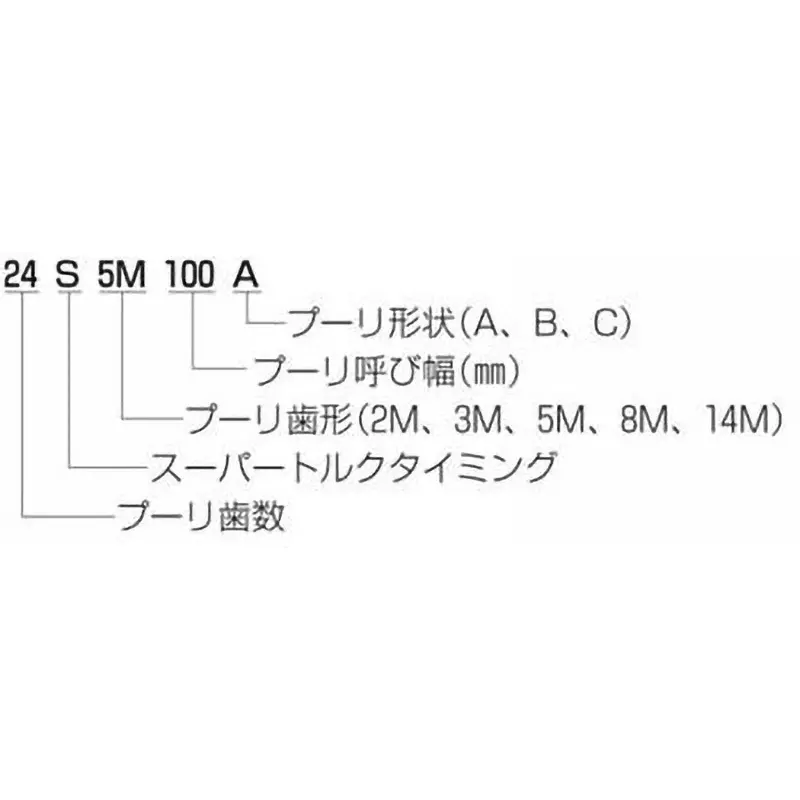

| Model No | P36S14M0400A |
| Shape | A Type |
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
P36S14M0400A |
Shape |
A Type |
Country of Origin |
Japan |
Product Type |
Timing Pulley |
Dimension LA (mm) |
53 mm |
Monotaro ID |
36159776 |
Pitch Diameter (Φmm) |
160.43 mm |
Shaft Hole Diameter d (mm) |
25 mm |

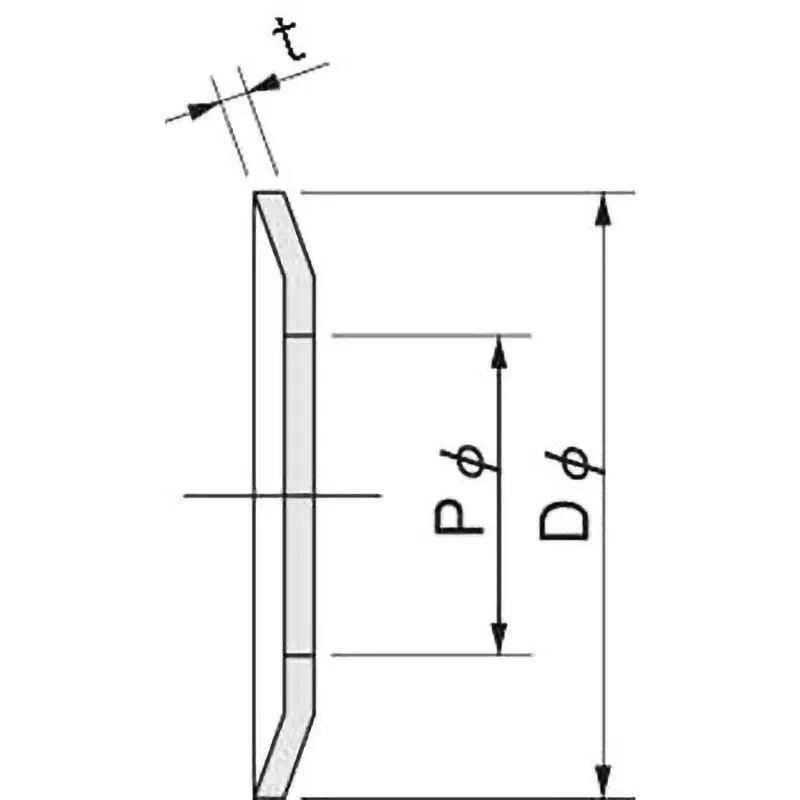

Suitable Flange |
F-23172141 |

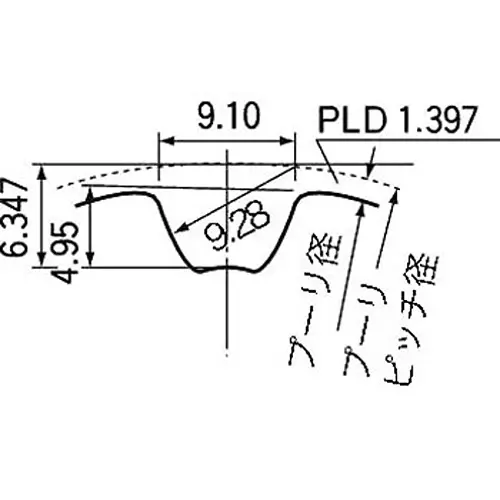

Compatible Belt |
S14M |
No. of Teeth |
36 |
Dimension H |
3.5 mm |
Nominal Width |
40 mm |
Mass |
7.36 Kg |
Maximum shaft hole diameter d (Φmm) |
70 mm |
Dimension W |
46 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
