| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 36S8M300B |
| Shape | B Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
36S8M300B |
Shape |
B Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

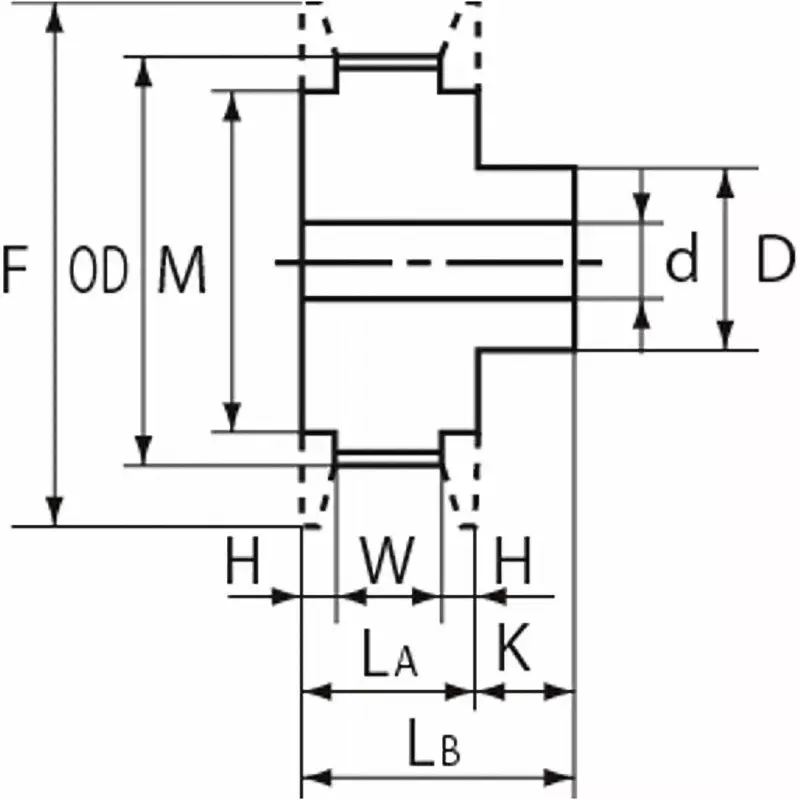

Dimension LA (mm) |
40 mm |
Monotaro ID |
47894043 |
Pitch Diameter (Φmm) |
91.67 mm |
Shaft Hole Diameter d (mm) |
16 mm |
Suitable Flange |
F-2310080 |
Compatible Belt |
S8M |
No. of Teeth |
36 |
Dimension H |
3.5 mm |
Dimension LB (mm) |
55 mm |
Dimension K |
15 mm |
Nominal Width |
30 mm |
Mass |
2.34 Kg |
Maximum shaft hole diameter d (Φmm) |
45 mm |
Dimension W |
33 mm |
Applicable flange outer diameter D (mm) |
100 mm |

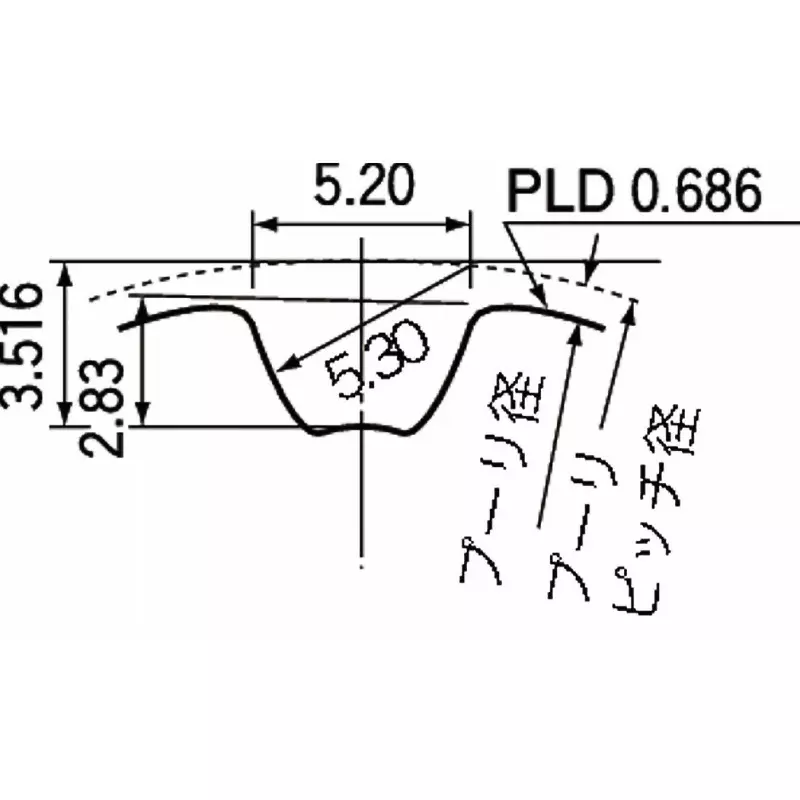

Tooth Type |
S8M |
Cell Spacing (mm) |
8 mm |
Dimension d |
75 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
