| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 32S14M400A |
| Shape | A Type |
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
32S14M400A |
Shape |
A Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

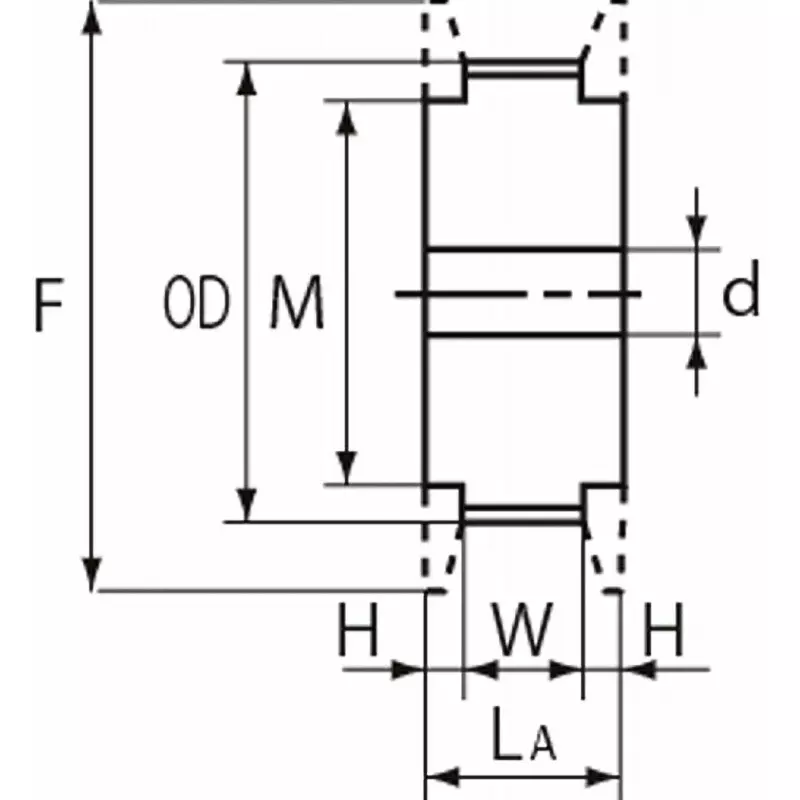

Dimension LA (mm) |
53 mm |
Monotaro ID |
47891225 |
Pitch Diameter (Φmm) |
142.6 mm |
Shaft Hole Diameter d (mm) |
25 mm |
Suitable Flange |
F-23152121 |
Compatible Belt |
S14M |
No. of Teeth |
32 |
Dimension H |
3.5 mm |
Nominal Width |
40 mm |
Mass |
5.68 Kg |
Maximum shaft hole diameter d (Φmm) |
62 mm |
Dimension W |
46 mm |
Applicable flange outer diameter D (mm) |
152 mm |
Applicable flange thickness t (mm) |
2.3 mm |
Applicable flange inner diameter P (mm) |
121 mm |

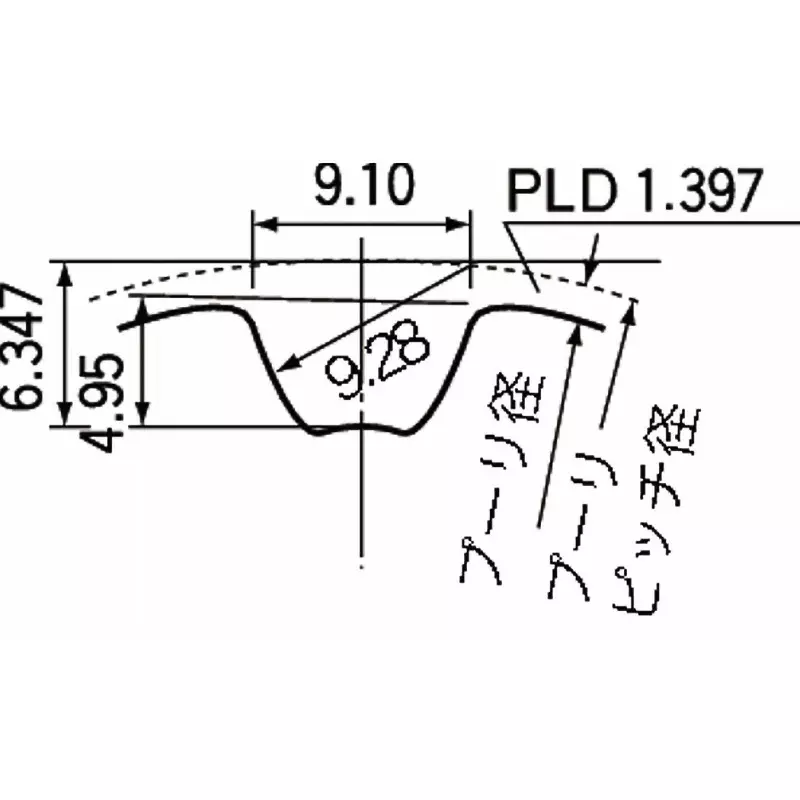

Dimension PLD |
1.397 mm |
Tooth Type |
S14M |
Cell Spacing (mm) |
14 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
