| Material | Steel |
| Type of Product | Super Torque Timing Pulley |

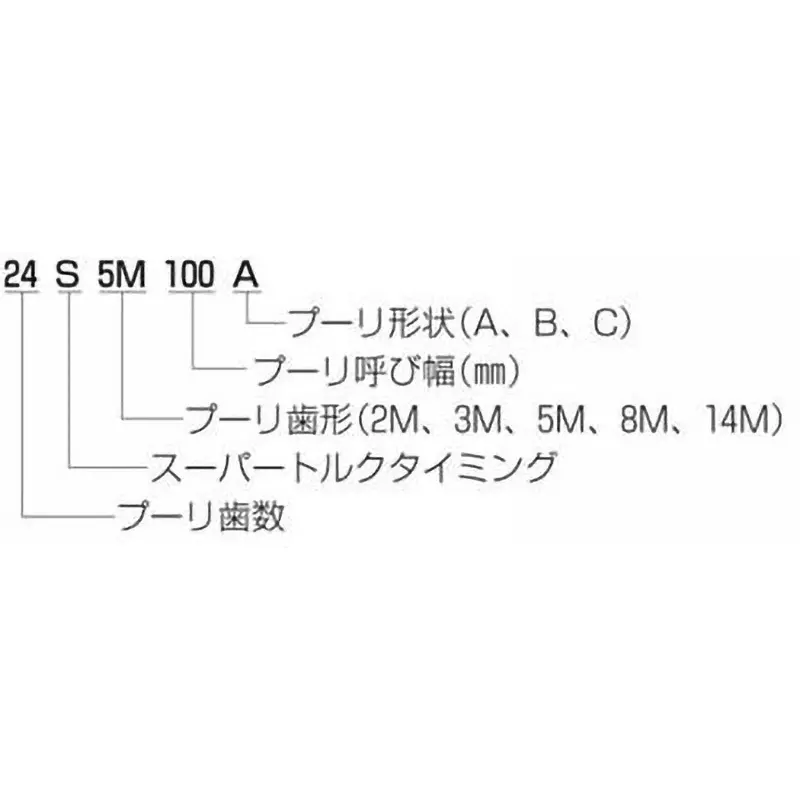

| Model No | P15S5M0150A |
| Shape | A Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
P15S5M0150A |
Shape |
A Type |
Country of Origin |
Japan |
Product Type |
Timing Pulley |

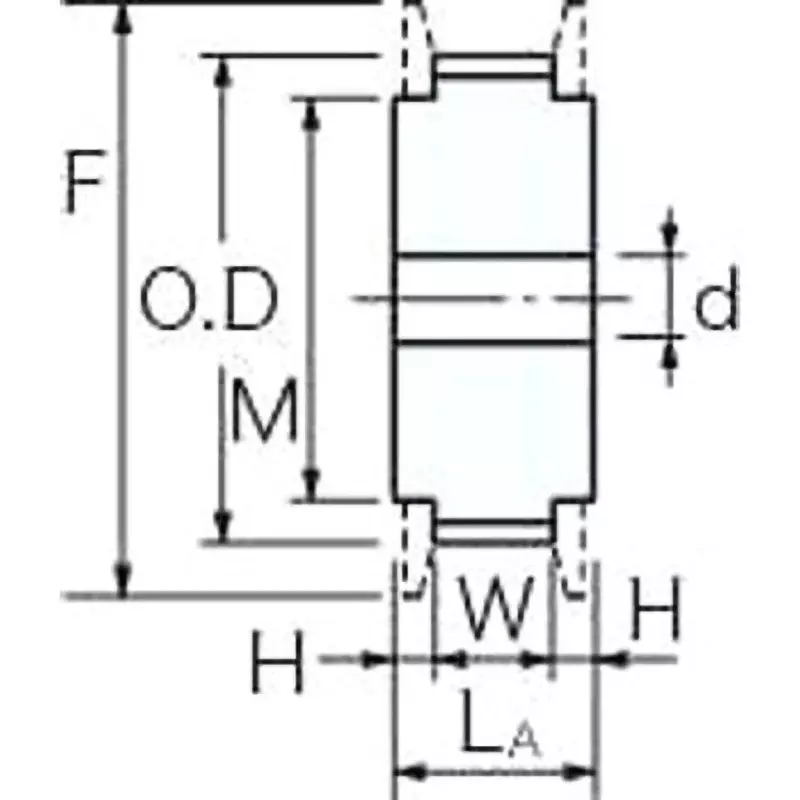

Dimension LA (mm) |
22 mm |
Monotaro ID |
36151665 |
Pitch Diameter (Φmm) |
23.87 mm |
Shaft Hole Diameter d (mm) |
7 mm |
Suitable Flange |
F-102818 |
Compatible Belt |
S5M |
No. of Teeth |
15 |
Dimension H |
2.5 mm |
Nominal Width |
15 mm |
Mass |
59 g |
Maximum shaft hole diameter d (Φmm) |
8 mm |
Dimension W |
17 mm |

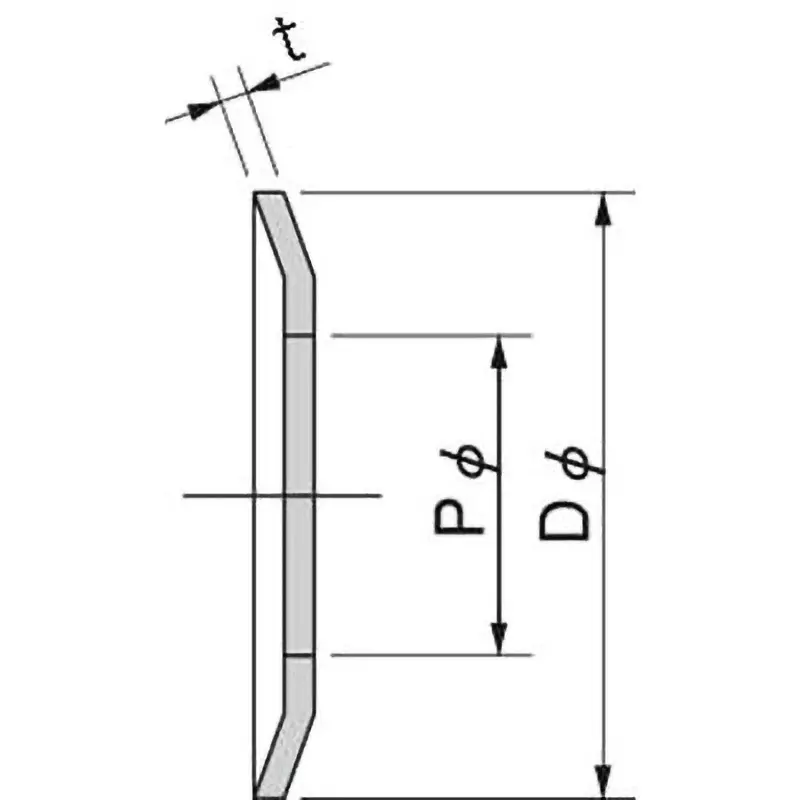

Applicable flange outer diameter D (mm) |
28 mm |
Applicable flange thickness t (mm) |
1 mm |
Applicable flange inner diameter P (mm) |
18 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
