Ships within 25 days
View
View
View
View
| Material | Steel |

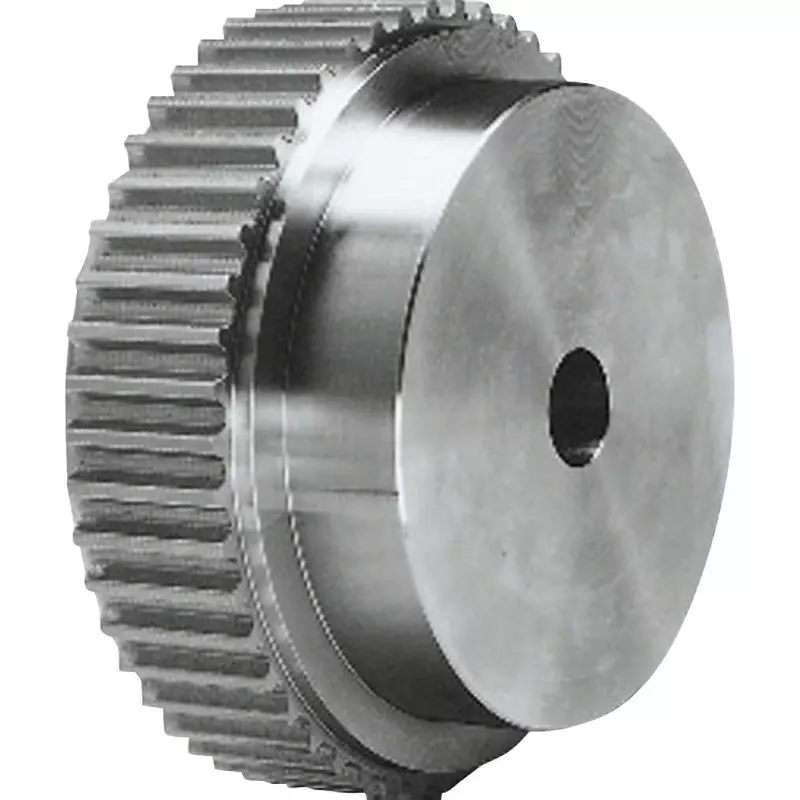

| Type of Product | Super Torque Timing Pulley |
| Model No | 36S5M150B |
| Shape | B Type |
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
36S5M150B |
Shape |
B Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

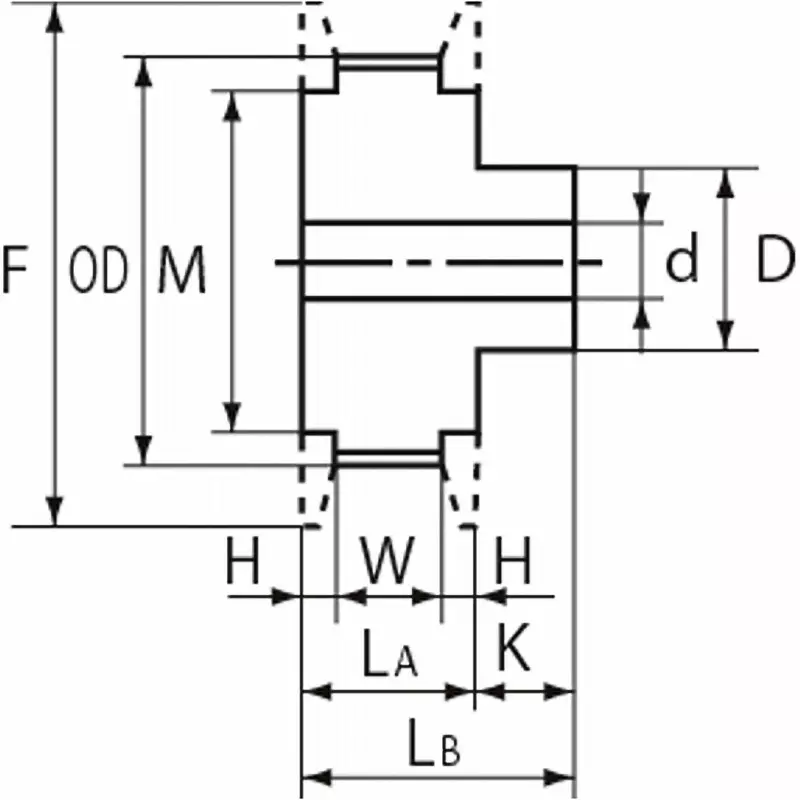

Dimension LA (mm) |
22 mm |
Monotaro ID |
47893955 |
Pitch Diameter (Φmm) |
57.3 mm |
Shaft Hole Diameter d (mm) |
10 mm |
Suitable Flange |
F-166141 |
Compatible Belt |
S5M |
No. of Teeth |
36 |
Dimension H |
2.5 mm |
Dimension LB (mm) |
34 mm |
Dimension K |
12 mm |
Nominal Width |
15 mm |
Mass |
490 g |
Maximum shaft hole diameter d (Φmm) |
28 mm |
Dimension W |
17 mm |
Applicable flange outer diameter D (mm) |
61 mm |

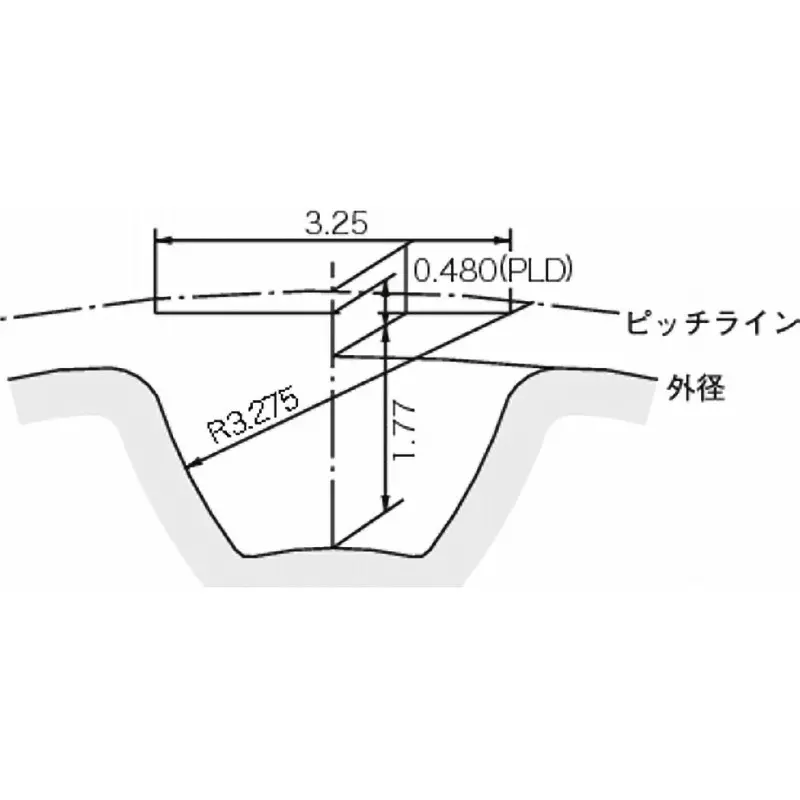

Tooth Type |
S5M |
Cell Spacing (mm) |
5 mm |
Dimension d |
38 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
