| Material | Steel |
| Type of Product | Super Torque Timing Pulley |

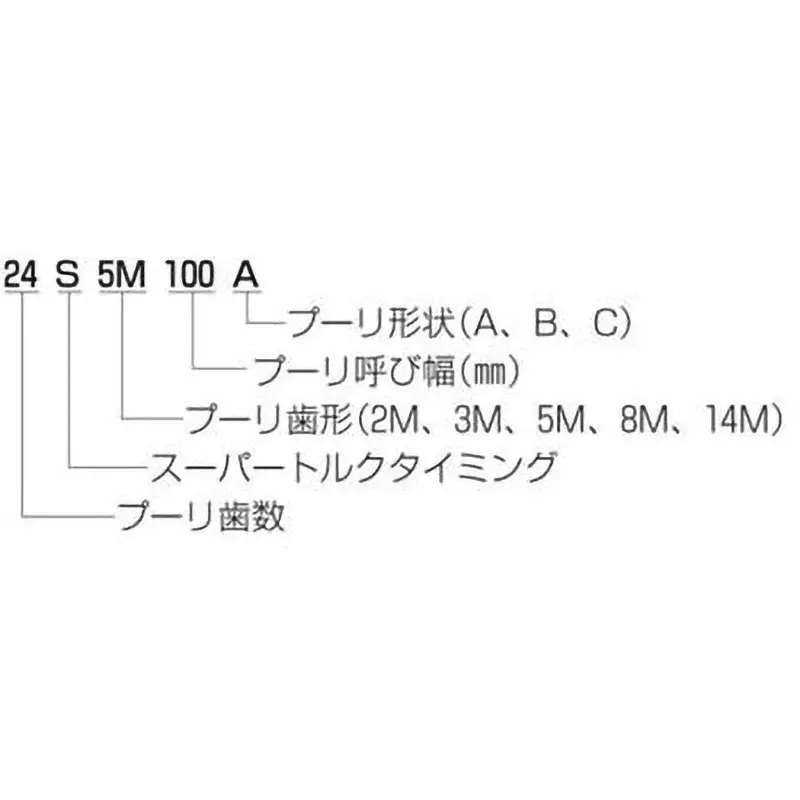

| Model No | P44S14M0400A |
| Shape | A Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
P44S14M0400A |
Shape |
A Type |
Country of Origin |
Japan |
Product Type |
Timing Pulley |
Dimension LA (mm) |
53 mm |
Monotaro ID |
36159864 |
Pitch Diameter (Φmm) |
196.08 mm |
Shaft Hole Diameter d (mm) |
30 mm |
Suitable Flange |
F-23208173 |
Compatible Belt |
S14M |
No. of Teeth |
44 |
Dimension H |
3.5 mm |
Nominal Width |
40 mm |
Mass |
11.19 Kg |
Maximum shaft hole diameter d (Φmm) |
90 mm |
Dimension W |
46 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
