| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 30S5M100A |
| Shape | A Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
30S5M100A |
Shape |
A Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

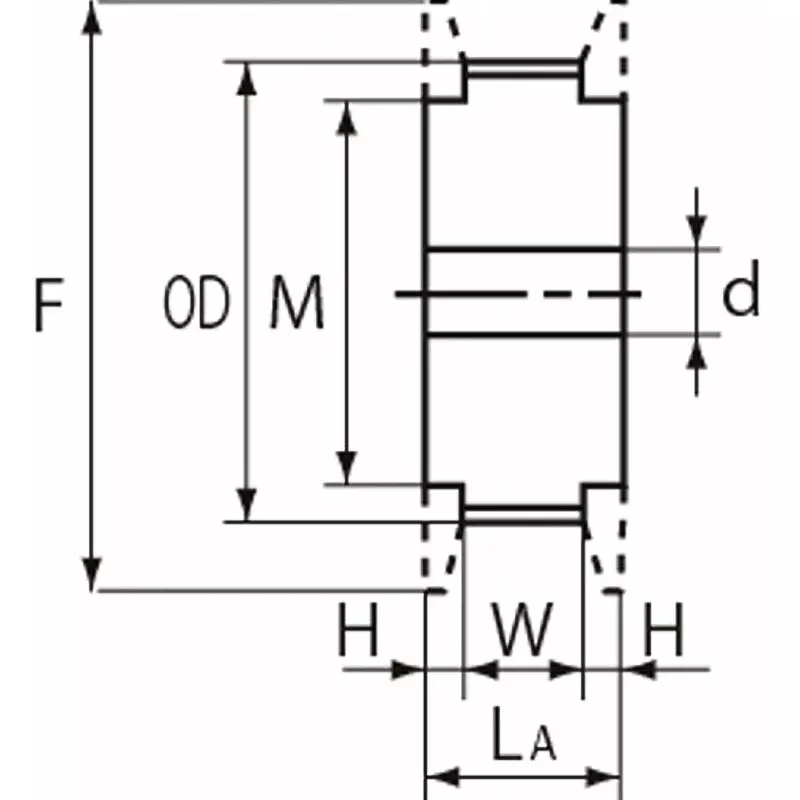

Dimension LA (mm) |
16 mm |
Monotaro ID |
47890071 |
Pitch Diameter (Φmm) |
47.75 mm |
Shaft Hole Diameter d (mm) |
10 mm |
Suitable Flange |
F-165136 |
Compatible Belt |
S5M |
No. of Teeth |
30 |
Dimension H |
2.5 mm |
Nominal Width |
10 mm |
Mass |
193 g |
Maximum shaft hole diameter d (Φmm) |
24 mm |
Dimension W |
11 mm |
Applicable flange outer diameter D (mm) |
51 mm |
Applicable flange thickness t (mm) |
1.6 mm |
Applicable flange inner diameter P (mm) |
36 mm |

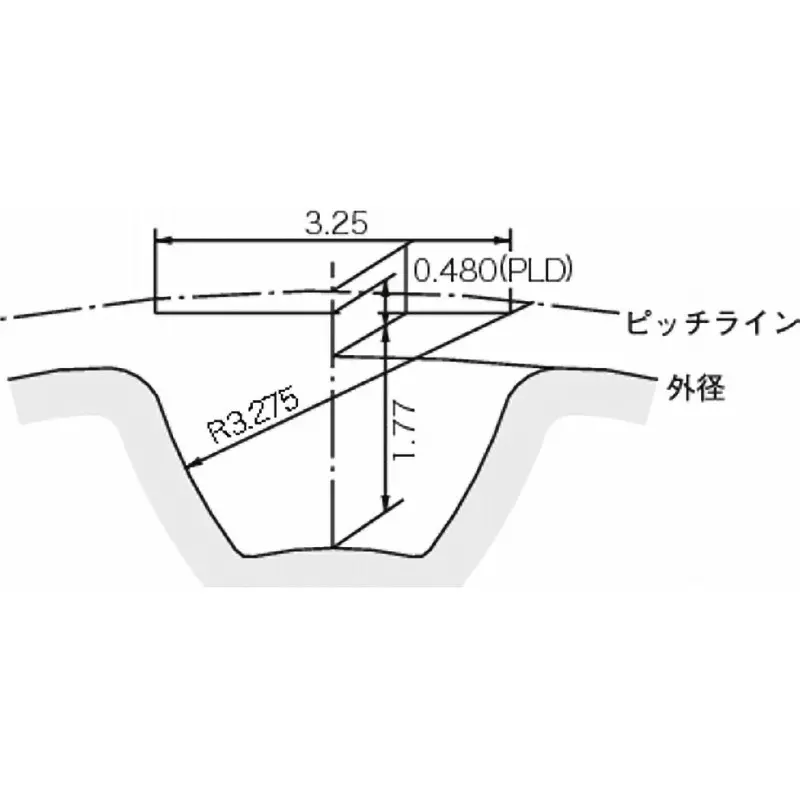

Dimension PLD |
0.48 mm |
Tooth Type |
S5M |
Cell Spacing (mm) |
5 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
