| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 32S8M300A |
| Shape | A Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
32S8M300A |
Shape |
A Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

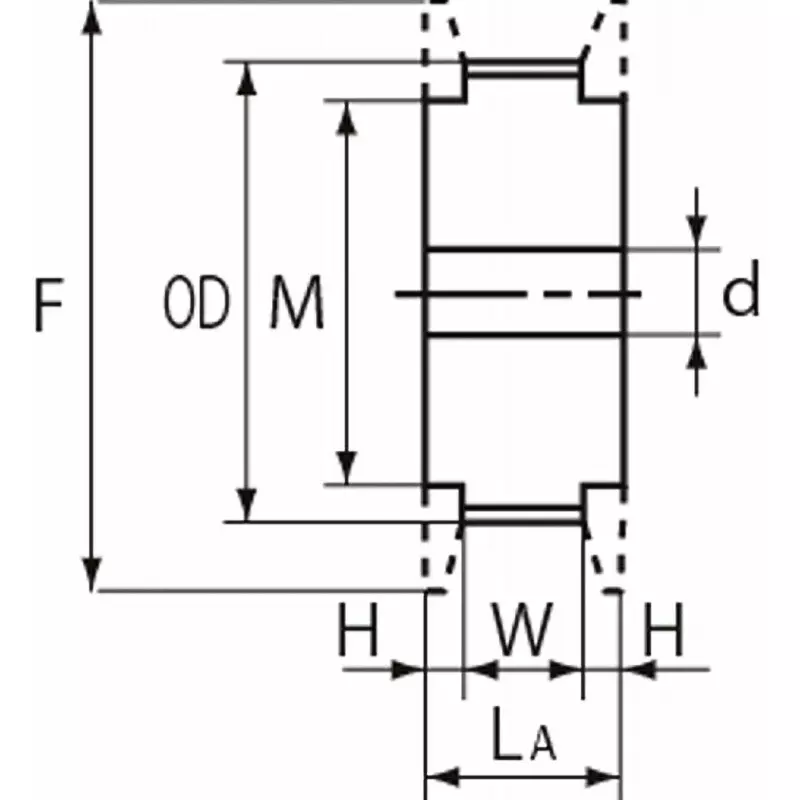

Dimension LA (mm) |
40 mm |
Monotaro ID |
47891487 |
Pitch Diameter (Φmm) |
81.49 mm |
Shaft Hole Diameter d (mm) |
16 mm |
Suitable Flange |
F-239070 |
Compatible Belt |
S8M |
No. of Teeth |
32 |
Dimension H |
3.5 mm |
Nominal Width |
30 mm |
Mass |
1.4 Kg |
Maximum shaft hole diameter d (Φmm) |
38 mm |
Dimension W |
33 mm |
Applicable flange outer diameter D (mm) |
90 mm |
Applicable flange thickness t (mm) |
2.3 mm |
Applicable flange inner diameter P (mm) |
70 mm |
Dimension PLD |
0.686 mm |
Tooth Type |
S8M |
Cell Spacing (mm) |
8 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
