| Material | High Strength Aluminum Alloy |

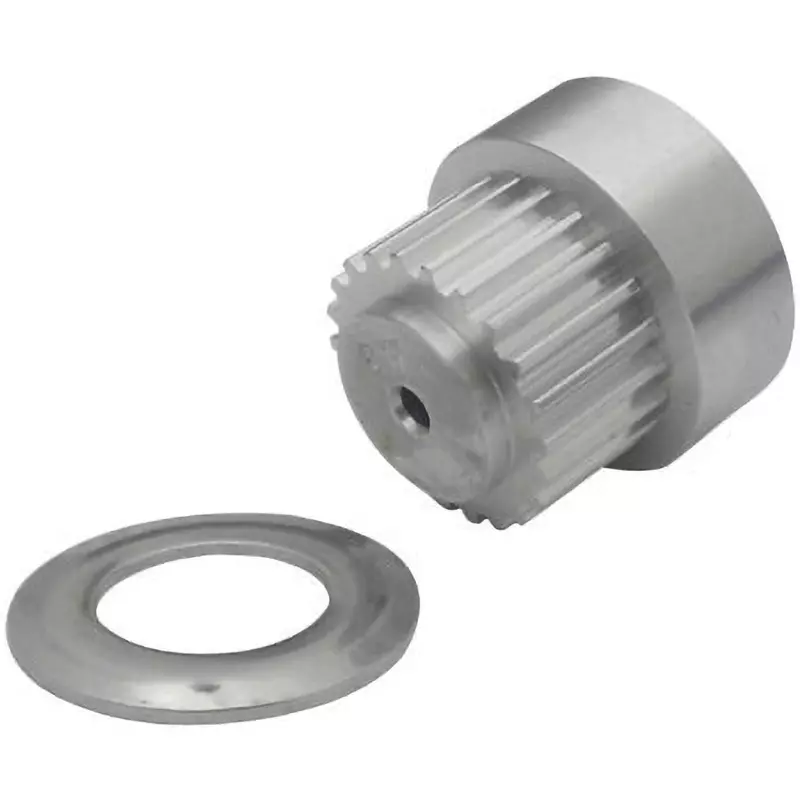

| Type of Product | Super Torque Timing Pulley |
| Model No | P22S3M0150-CAL |
| Shape | C Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
High Strength Aluminum Alloy |
Type of Product |
Super Torque Timing Pulley |
Model No |
P22S3M0150-CAL |
Shape |
C Type |
Country of Origin |
Japan |
Nominal Width (mm) |
150 mm |
Product Type |
Timing Pulley |
Monotaro ID |
35271616 |

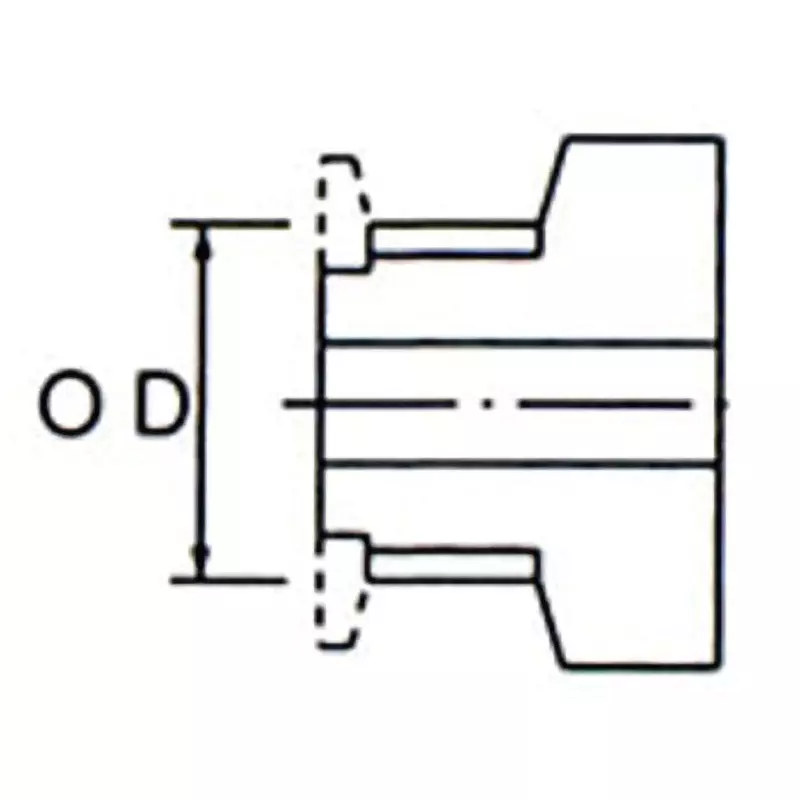

Outer Diameter (Φmm) |
20.25 mm |
Pitch Diameter (Φmm) |
21.01 mm |
Shaft Hole Diameter d (mm) |
(min) 4 mm / (max) 9 mm |
Suitable Flange |
F-102514 |
Suitable Belt Width (mm) |
15 mm |
Compatible Belt |
S3M |
Tooth width W (mm) |
17 mm |
No. of Teeth |
22 |

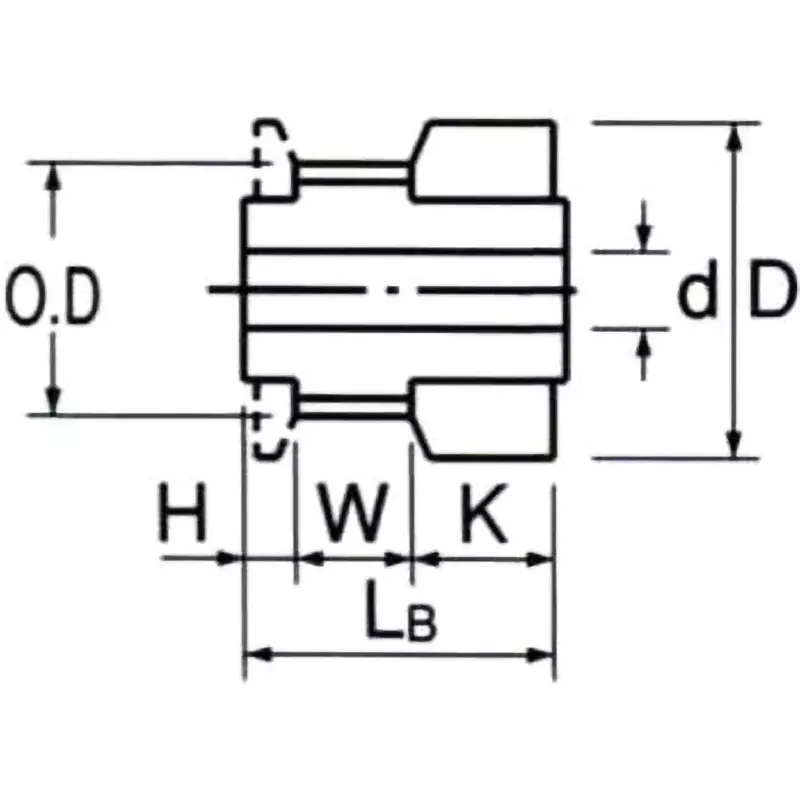

Dimension H |
2 mm |
Dimension LB (mm) |
29 mm |
Dimension K |
10 mm |
Dimension D (Φmm) |
25 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
