| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 26S8M250B |
| Shape | B Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
26S8M250B |
Shape |
B Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |

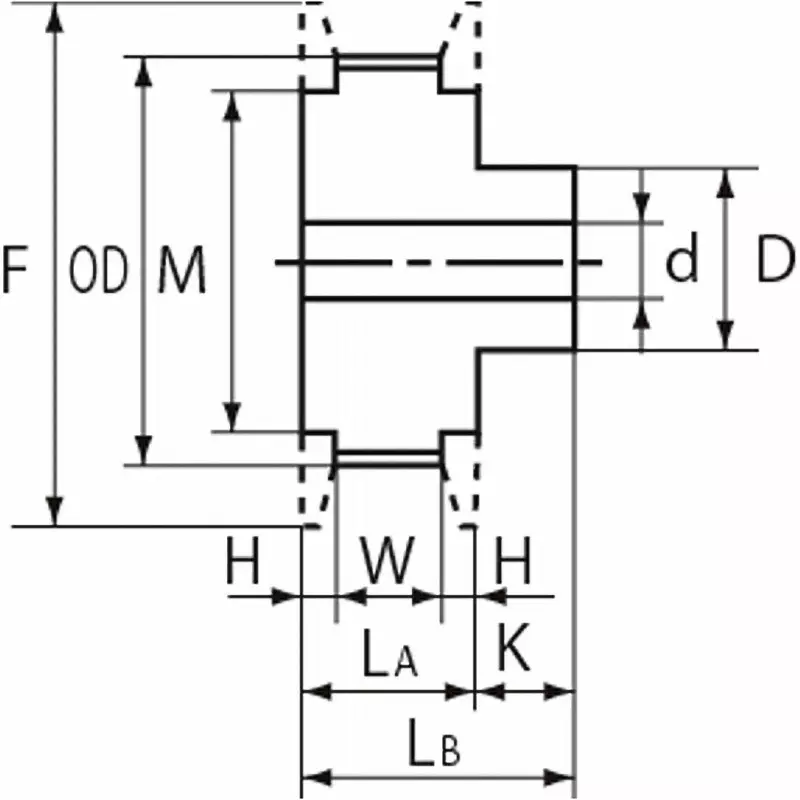

Dimension LA (mm) |
35 mm |
Monotaro ID |
47885923 |
Pitch Diameter (Φmm) |
66.21 mm |
Shaft Hole Diameter d (mm) |
16 mm |
Suitable Flange |
F-237555 |
Compatible Belt |
S8M |
No. of Teeth |
26 |
Dimension H |
3.5 mm |
Dimension LB (mm) |
50 mm |
Dimension K |
15 mm |
Nominal Width |
25 mm |
Mass |
1 Kg |
Maximum shaft hole diameter d (Φmm) |
30 mm |
Dimension W |
28 mm |
Applicable flange outer diameter D (mm) |
75 mm |

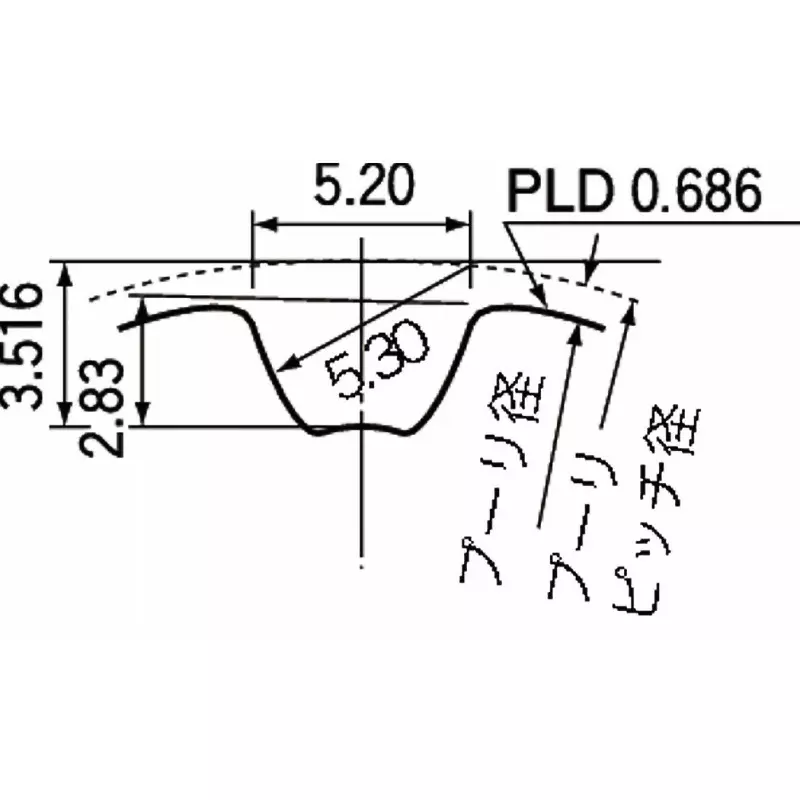

Tooth Type |
S8M |
Cell Spacing (mm) |
8 mm |
Dimension d |
51 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
