| Material | Casting |
| Type of Product | Super Torque Timing Pulley |
| Model No | P72-S8M-0250W |
| Shape | W Type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Casting |
Type of Product |
Super Torque Timing Pulley |
Model No |
P72-S8M-0250W |
Shape |
W Type |
Country of Origin |
Japan |
Nominal Width (mm) |
250 mm |
Product Type |
Timing Pulley |

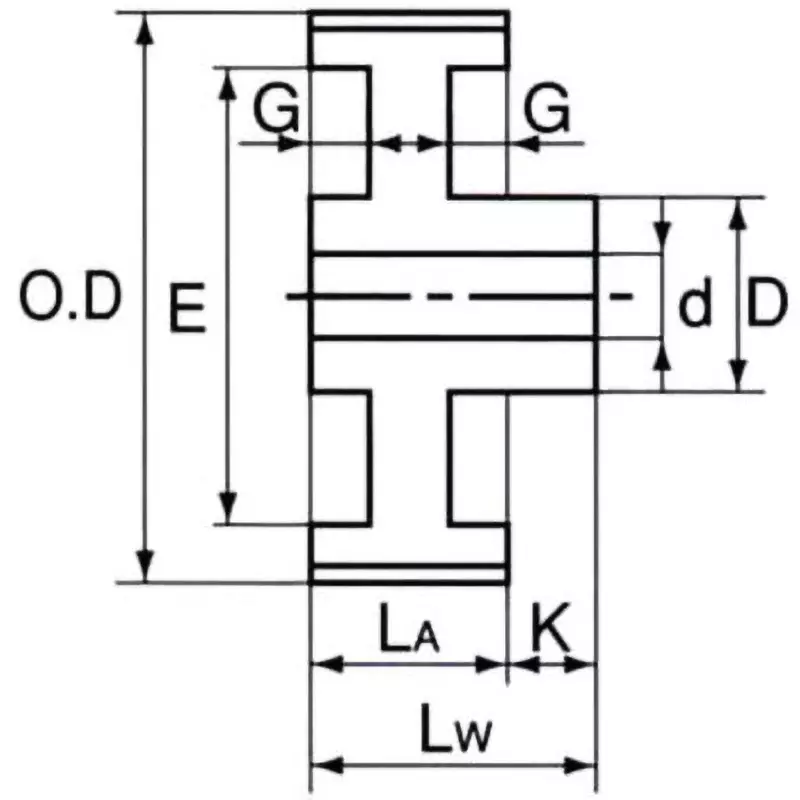

Dimension LA (mm) |
25 mm |
Monotaro ID |
35271153 |
Outer Diameter (Φmm) |
181.97 mm |
Pitch Diameter (Φmm) |
183.35 mm |
Shaft Hole Diameter d (mm) |
(min) 20 mm / (max) 62 mm |
Suitable Belt Width (mm) |
25 mm |
Compatible Belt |
S8M |
Tooth width W (mm) |
28 mm |
No. of Teeth |
72 |
Dimension H |
3.5 mm |
Dimension LB (mm) |
55 mm |
Dimension K |
23 mm |
Dimension D (Φmm) |
110 mm |
Dimension G |
12 mm |
Dimension E |
158 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
