| Material | Steel |
| Type of Product | Super Torque Timing Pulley |
| Model No | 48S8M600B |
| Shape | B Type |
Material |
Steel |
Type of Product |
Super Torque Timing Pulley |
Model No |
48S8M600B |
Shape |
B Type |
Country of Origin |
JAPAN |
Product Type |
Timing Pulley |
Dimension LA (mm) |
72 mm |
Monotaro ID |
47903134 |
Pitch Diameter (Φmm) |
122.23 mm |
Shaft Hole Diameter d (mm) |
25 mm |
Suitable Flange |
F-23131111 |
Compatible Belt |
S8M |
No. of Teeth |
48 |
Dimension H |
3.5 mm |
Dimension LB (mm) |
92 mm |
Dimension K |
20 mm |
Nominal Width |
60 mm |
Mass |
7.21 Kg |
Maximum shaft hole diameter d (Φmm) |
62 mm |
Dimension W |
65 mm |
Applicable flange outer diameter D (mm) |
131 mm |

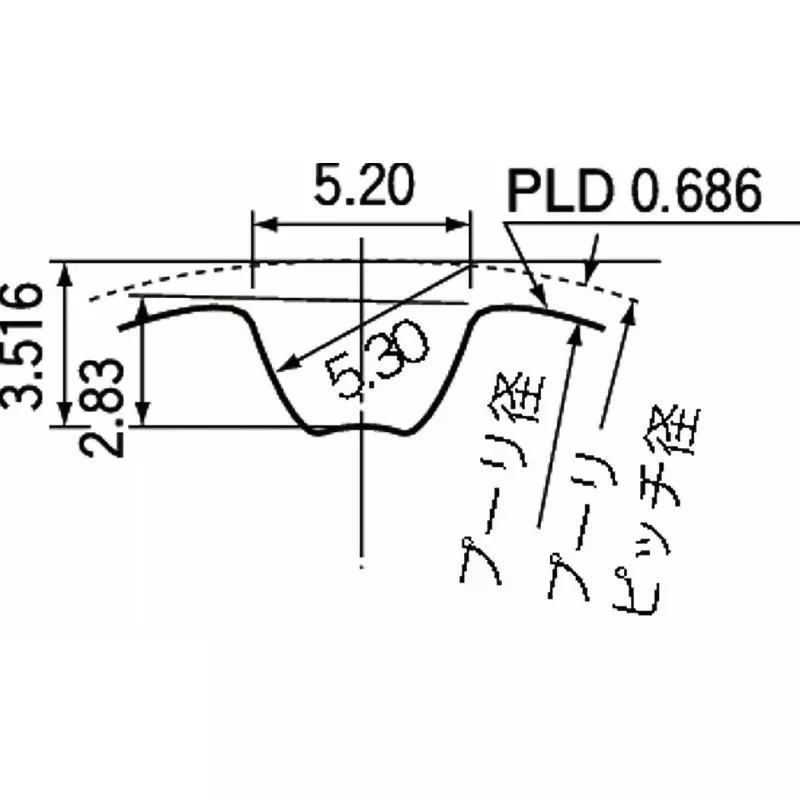

Tooth Type |
S8M |
Cell Spacing (mm) |
8 mm |
Dimension d |
100 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
