Ships within 19 days
Rated Input (W) (50 / 60Hz)
Model No
View
View
View
View
| Rated Input (W) (50 / 60Hz) | 11.28 W |
| Rated Speed (rpm) | 4100 RPM |
| Rated current (A) (50 / 60Hz) | 0.47 A |
| Maximum Static Pressure (Pa) | 120 |
Rated Input (W) (50 / 60Hz) |
11.28 W |
Rated Speed (rpm) |
4100 RPM |
Rated current (A) (50 / 60Hz) |
0.47 A |
Maximum Static Pressure (Pa) |
120 |
Rotational Speed |
High Speed |
Type |
DC |
Monotaro ID |
63701829 |
Sound Pressure Level (dB) |
51 |
Type of Product |

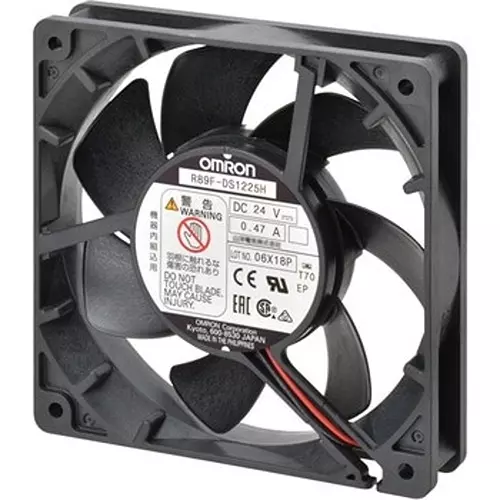

DC Axial Fan |
Model No |
R89F-DS1225H-S1 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Maximum Airflow |
3.68 m³/min |
Set Contents |
Fan body, finger guardx1, M4 screw (40 mm)x4 & nut setx4 |
Speed |
high speed |
Motor Type |
Brushless DC Motor |
Bearing Type |
ball bearing |
Rated Current (A) |
0.47 |
Part No |
64-9683-40 |
Rated Voltage (V) |
DC 24 |
Voltage Fluctuation Tolerance |
20.4 to 27.6V |
Size (mm) |
□120xt25 |
Rated Rotation Speed (min⁻¹ [rpm]) |
4100 |
Pack of |
1 Pcs |
Rated input (W) |
11.28 |
