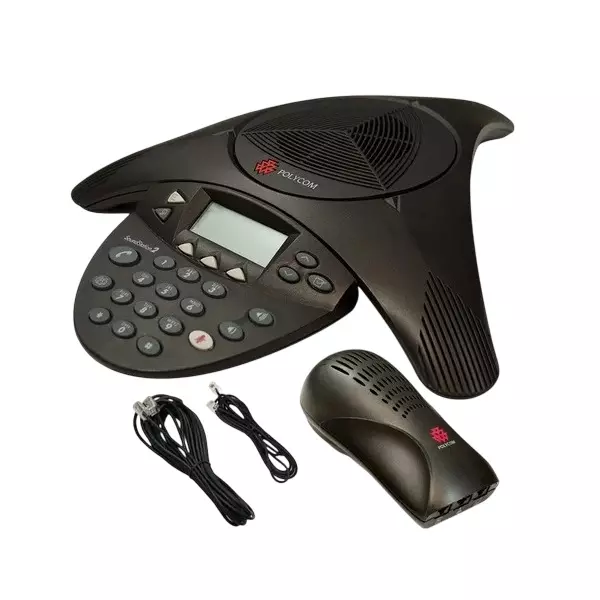

The Polycom Soundstation 2 Expandable Conference Phone With Display is a solution for small to midsize conference rooms with up to 10 participants. Using the company's Acoustic Clarity technology, the device delivers clear voice quality without drop outs or clipping so that meetings can be more productive. Users can speak in a normal voice and be heard from up to 10' away.
Dynamic Noise Reduction (DNR) actively removes background noise such as projectors and ventilation systems while using three cardioid microphones for 360° coverage. Intelligent mixing highlights the person speaking not ambient noise while also resisting interference from mobile phones and other wireless devices.
The phone provides users with advanced features, enabling conference calls that are more flexible and productive. The 2.5mm applications port allows you to connect the unit to a mobile phone for conference calls from locations without analog phone lines or to a computer for Internet calling. A large backlit display offers easily visible call information and telephone functions. The unit can connect to any standard analog telephone line making it easy to set up. With traditional telephone features like redial, mute, transfer, and hold you have a fully featured conference phone that is both familiar and easy to use.
Specification:
Size (L x W x H): 14.5 x 12.25 x 2.5 Inch.
Power: 110V 60Hz AC / 220V 50 Hz AC.
Architecture:
The tabletop unit contains audio processing functions and the keypad while the wall module contains power and the telephone line interfaces.
User Interface:
User selectable ring tones.
Configurable soft keys for easy dialing of voice conferencing services.
Multi-lingual support: English, German, French, Italian, Spanish, Portuguese, Norwegian.
Password protected configuration settings for administrators.
Caller ID and Phone Book:
Support for multiple Caller ID standards (Bellcore Type 1 with subscription, ETSI, DTMF, British Telecom).
Phone book/speed dial list with up to 25 entries.
Keypad:
12-key telephone keypad.
On-hook/off-hook, conference, mute, volume up/down keys, menu, navigation keys.
3 context sensitive soft keys, including redial, hold, programmable conference key.
Console Loudspeaker:
Frequency Response: 300 to 3300 Hz.
Volume: adjustable to 94 dBA SPL (peak) volume at 0.5 meters.
Audio:
Polycom Acoustic Clarity full duplex - IEEE 1329.
Type 1
Up to 10 ft. microphone pick-up range
Gated microphones with intelligent microphone mixing
Dynamic noise reduction
Interfaces:
2 EX microphone connections.
Applications Port for connection to other communication devices such as mobile phones and computers.
RCA Auxiliary audio jack.
Recommended Room Conditions:
Reverberation Time:
Noise Level:
Console Microphones:
3 cardioid microphones 300 to 3500 Hz.
Regulatory Compliance:
NA Cl/C-UL.
FCC Part 68.
FCC Part 15 Class B.
Canadian ICES-003.
CE Mark (R & TTE Directive).
VCCI Class B.
Environmental Requirements:
Operating Temperature: 40° - 104°F (5° - 40°C).
Relative Humidity: 20% - 85% (noncondensing).
Storage Temperature: -22° - 131°F (-30° - 55°C).
SoundStation2 Ships with:
Tabletop phone console.
21 ft. (6.4 m) cord to console.
7 ft. (2.1 m) telco cable to RJ-11 telephone jack.
User documentation (user guide CD, quick installation guide, registration card).
Technical Features:
Polycom acoustic clarity full duplex.
3 cardiod microphones.
10 foot microphone pickup range.
Intelligent microphone mixing.
Dynamic Noise Reduction.
Volume (adjustable up to 94 dBA at 0.5 meters).
User selectable ring tones.
12-key telephone keypad.
Mute, volume up/down keys.
Mute, conference keys.
Graphical backlit LCD.
Configurable conference speed dial key.
3 context sensitive soft-keys.
Multi-lingual user interface.
Caller ID.
25 entry phone book.
RCA auxiliary audio jack.
Applications port.
EX microphone jacks.
Benefits:
More Productive Calls: Patented polycom acoustic clarity technology delivers crystal-clear conversations, making conference calls more productive.
Hear and be Heard Clearly: Intelligent microphones and Dynamic Noise Reduction technology ensures everyone can be heard.
Resists Interference from Mobile Phones: Clearer calls with no distracting noise from wireless devices.
Backlit Display Provides Important Information: Displays console phone number, number called, duration/progress of call and supports worldwide Caller ID.
Connect to Mobile Phones and PCs: Applications Port offers unmatched flexibility for mobile phone and internet calling.
Easy to use and install: Connects into any analog phone jack and can be connect to a PBX with an analog extension.
