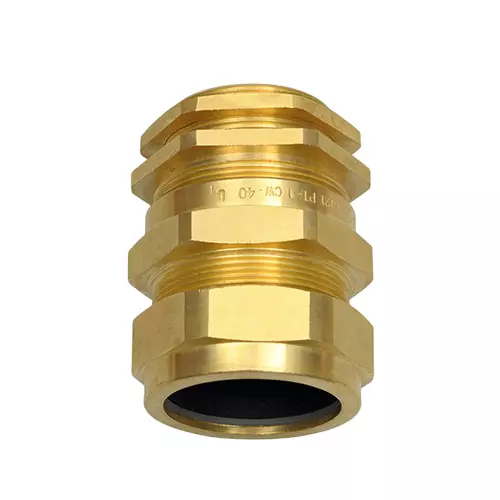

| Product Sub Type | Industrial Double Compression Cable Glands For Armoured Cables |
| Material | Nickel Plated Brass |
| Features | Used For Both Indoor & Outdoor Application With Steel Wire Armour (SWA) Cable Providing An Environmental Seal On The Cable Inner Sheath And Cable Outer Sheath. |
| Type of Product | Cable Glands |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Product Sub Type |
Industrial Double Compression Cable Glands For Armoured Cables |
Material |
Nickel Plated Brass |
Features |
Used For Both Indoor & Outdoor Application With Steel Wire Armour (SWA) Cable Providing An Environmental Seal On The Cable Inner Sheath And Cable Outer Sheath. |
Type of Product |
Cable Glands |
Thread |
M50S |
Entry Thread Length (mm) |
15 mm |
Across Corners (mm) |
72 mm |
Under Armour Diameter |
32 to 42 mm |
Country of Origin |
USA |
Part No |
DAA1100463 |
Application |
Industrial |
Seal Material |
Neoprene |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
Protrusion Length |
65 mm |
Model Name |
E1W (Category A) |
Shroud Material |
PVC |
NPT Thread Type |
NPT1-1/2 inch (N112L) |
Across Flats Hex Size (mm) |
64.5 mm |
Metric Thread |
M50 |
Entry Diameter |
50 mm |
Package Contains |
25 Pcs |
Cable Dia Range |
39 to 45 mm |
Armour Range |
2 to 2.5 mm |
Sealing Type |
Double Compression Sealing |
