| Size (mm) | 50 mm |
| Suitable For | Water, Oil, Air, Gas |
| Size (Inch) | 2 inch |

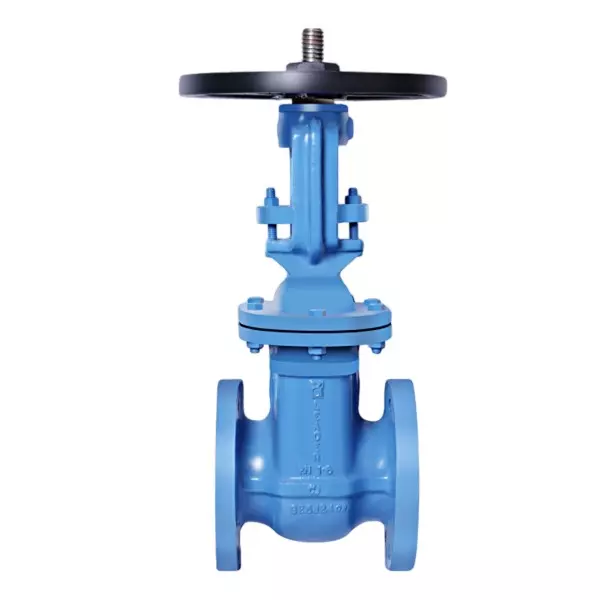

| Type of Product | Gate Valve Flanged |
Size (mm) |
50 mm |
Suitable For |
Water, Oil, Air, Gas |
Size (Inch) |
2 inch |
Type of Product |
Gate Valve Flanged |
End Connection Type |
Flanges as per IS:1538 PN 1.0 FF (Drilled) |
Model No |
CI 010A |
Type |
Bolted Bonnet Outside Yoke CI 010A N 4 100 Type, Rising Stem (Without Isi Mark Non Ibr) |
Trim |
Stainless Steel (ASTM A276 Type 410) |
Seat |
Renewable Seat |
Color |
Blue |
Pressure |
B.T.P. -1.5 MPa Hyd, S.T.P. - 1.0 MPa Hyd |
Fastener |
Carbon Steel (IS 1363) |
Rating |
Pressure/Class: PN-1.0 |
Wedge |
Solid Wedge |
Gasket |
Rubber (IS 638 Type B) |
Body Material |
Cast Iron |
Country of Origin |
India |
Size Code |
J |
Material Standard |
IS: 210 GR FG 200 |
Name of Manufacturer/Packer/Importer |
Industrial Engineering Syndicate |
Gland Type |
Lubricated Hemp and Jute |
