| Country of Origin | Japan |
| Shape | Enclosed Limit Switch |
| Operating Temperature | -10 to 80 ℃ |
| Frequency | 50/60 Hz |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Shape |
Enclosed Limit Switch |
Operating Temperature |
-10 to 80 ℃ |
Frequency |
50/60 Hz |
Type of Product |
Limit Switch |
Operating Voltage (AC) |
125 - 480 V |
Operating Positions |
45.8 ± 0.8 mm |
Vibration Resistance |
10 to 55 Hz |
Inrush Current |
NC: 30 A , NO: 15 A |
Mounting |
Side Mounting |
Shock Resistance |
1,000 m/s² |
Allowable Operating Speed |
0.01 mm/s to 0.5 m/s |
Insulation Resistance |
100 MΩ |
Ambient Humidity |
35 ~ 95 % R.H. |
Operating Mechanism |
Snap Action |
Protection Class |
IEC60529 (JEM): IP67 |
Release Force |
Min. 2.35 N |
Operating Force |
Max. 7.85 N |
Mechanical Cycles (In Numbers) |
120 operations |
Electrical Cycles (In Numbers) |
20 operations |
Differential Travel |
0.1 mm |
Contact Type |
SPDT |
Operating Voltage (DC) |
125 - 250 V |
Poles & Throw (Contact) Configuration |
Single Pole Double Throw |
Actuator Type |
Sealed Plunger |
Over travel |
5 mm |
Pre-Travel |
2 mm |
Contact Resistance |
15 mΩ Max. |

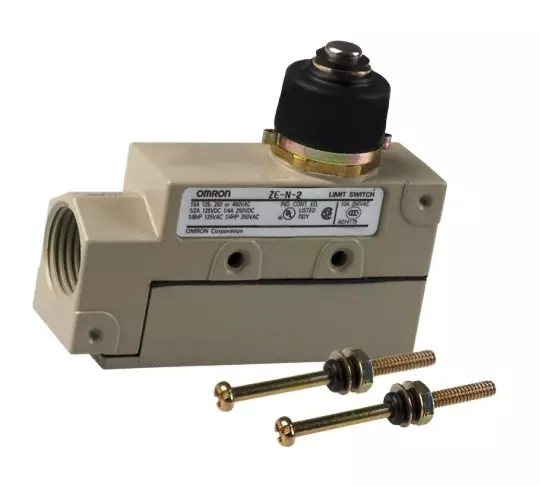

Model No |
ZE-N-2 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
