| Type | Compact limit switch |
| Country of Origin | Japan |
| Shape | General-purpose vertical type |
| Type of Product | Limit Switch |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Compact limit switch |
Country of Origin |
Japan |
Shape |
General-purpose vertical type |
Type of Product |
Limit Switch |
Mechanical Durability |
10 million times or more |
Allowable Operating Speed |
0.1 mm to 0.5m/s |
Protection Class |
IP67 |
Electrical Durability |
200,000 operations or more (125 VAC, 5 A resistance load) |
Actuator Type |
Seal / cross / roller / plunger type |

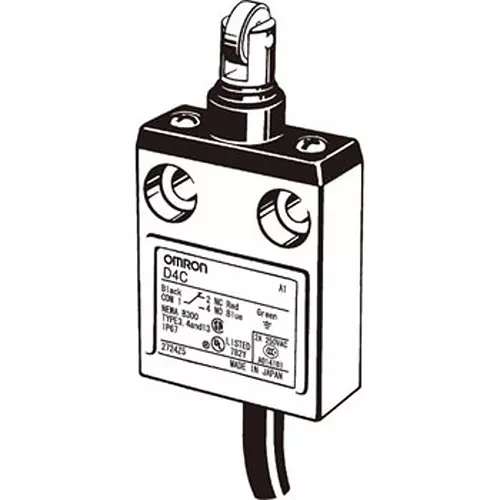

Model No |
D4C-3433 |
Monotaro ID |
46522077 |
Withstand Voltage |
(between terminals of the same polarity)<br> AC1000V 50/60Hz 1min, (between live metal part and earth)<br> AC1500V 50/60Hz 1min/Uimp 2.5kV(EN60947-5-1), (between each terminal and non-current-carrying metal parts)<br> AC1500V 50/60Hz 1min/Uimp 2.5kV(EN60947-5-1) |
Contact Configuration |
1c |
Rated Sealed Thermal Current |
5A, 4A, 0.5A(EN60947-5-1)(I the) |
Electric Shock Protection Class |
ClassI (with ground wire) |
Rated Frequency (Hz) |
50/60 |
Short Circuit Protection Device |
10A fuse gI or gG (IEC60269) |
Cable Length (m) |
3 |
Electrical ratings |
DC30V 4A (with LED indicator light) |
Inrush current (A) |
Normally closed circuit: Up to 20, Normally open circuit: Up to 10 |
Rated Insulation Voltage (V) |
(Ui)300(EN60947-5-1) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 70 (no icing) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V mega) |
