Ships within 25 days
Actuator Type
Cable Length
Model No
Vibration Resistance
View
View
View
View
| Country of Origin | JAPAN |
| Type of Product | Touch Switch |
| Weight | (Switch body) approx. 20, (Cable) approx. 10 / m |
| Mechanical Durability | 10 million times or more (at 5 to 35 ° C, 40 to 70% RH) |
Country of Origin |
JAPAN |
Type of Product |
Touch Switch |
Weight |
(Switch body) approx. 20, (Cable) approx. 10 / m |
Mechanical Durability |
10 million times or more (at 5 to 35 ° C, 40 to 70% RH) |
Vibration Resistance |
16.7 Hz Double amplitude 1 mm |
Shock Resistance |
Up to 1000 |
Allowable Operating Speed |
5-500 m m/s |
Insulation Resistance |
Between terminals and non-charged metal parts 100 or more (at 250 V DC ) |
Protection Class |
IP67 |
Cable Length |
1 |
Electrical Durability |
5 million times or more (30 V DC, 30 mA resistance load) (at 5 to 35 ° C, 40 to 70% RH) |
Actuator Type |

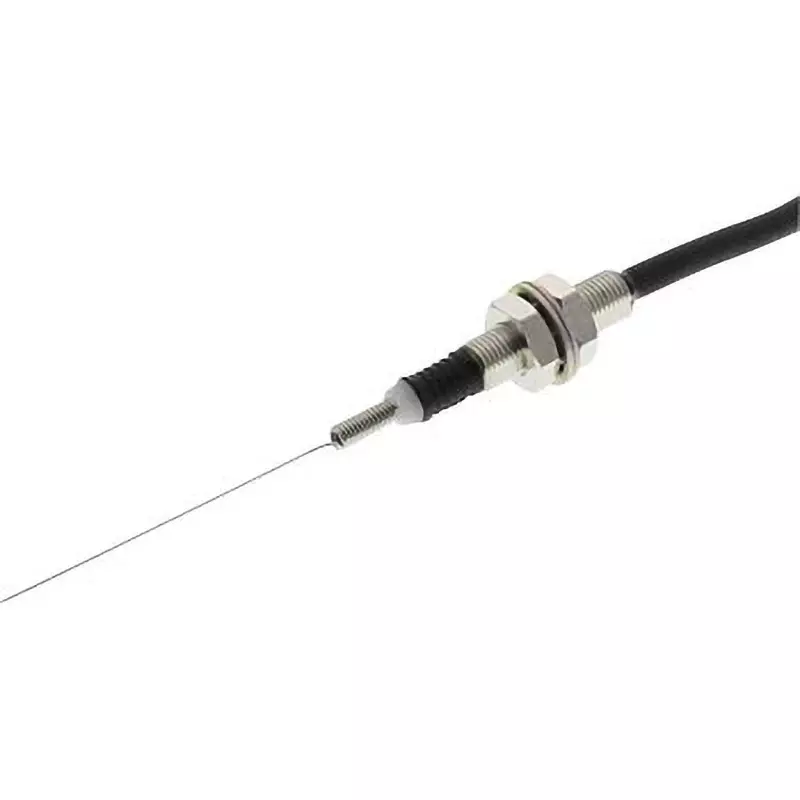

Wire spring type (short spring) |
Contact Resistance |
0.7 or less (initial value) |
Model No |
D5B-8511 |
Operation Ambient Temperature |
-10 to +70 (no icing) |
Ambient Humidity to Use |
35 95% RH or less |
Monotaro ID |
39041825 |
Withstand Voltage |
Between terminals of the same polarity: 250 VAC (at TTP) Between each terminal and non current carrying metal parts: Between each terminal and non current carrying metal parts: 1000 VAC (50/60 Hz for 1 min) |
Electrical ratings |
DC 5 V 1 mA DC 30 V 30 mA (resisti Ve load) |
Allowable Operation Frequency (Times / Min) |
Mechanical: 120, Electrical: 60 |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
Up to 50 |
Body Diameter |
M8 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
