Ships within 25 days
Terminal Shape
Switch Type
Model No
View
View
View
View
| Type | General Type (Standard Type) |
| Country of Origin | JAPAN |
| Shape | General-purpose vertical type |
| Type of Product | 2-Circuit Limit Switches WL-N / WLG |
Type |
General Type (Standard Type) |
Country of Origin |
JAPAN |
Shape |
General-purpose vertical type |
Type of Product |
2-Circuit Limit Switches WL-N / WLG |
Insulation Resistance |
100 or more (with DC500V mega) |
Protection Class |
IP67 |
Switch Type |
General built-in switch 1a1b contact type |

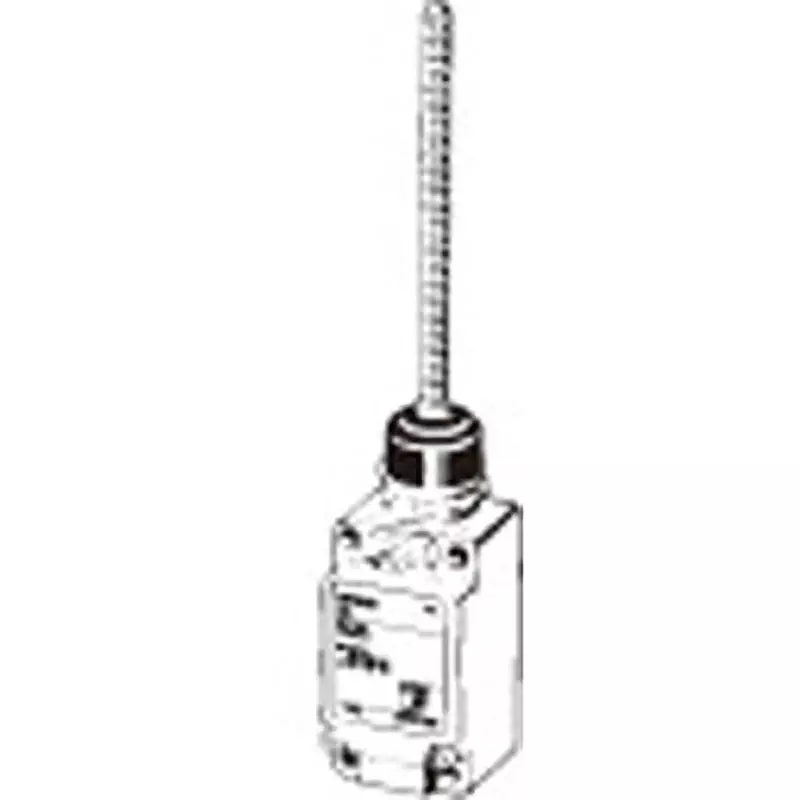

Actuator Type |
Coil spring (spring diameter ?6.5) |
Model No |
WLNJ-LE-N |
Monotaro ID |
66530004 |
Withstand Voltage |
Between terminals of the same pole: AC1000V + 50 / 60Hz + 1min, Between each terminal and ground: AC2200V + 50 / 60Hz + 1min, Between each terminal and non-charged metal part: AC2200V + 50 / 60Hz + 1min |
Mass (g) |
Approximately 255 (for type WLCA2-N) |
Rated Frequency (Hz) |
50/60 |
Terminal Screw |
4-M3.5 |
Energizing Current (A) |
10 |
Load Connection |
General load / micro load shared |
Import Country |
Direct Import from Japan |
Temperature Range |
Standard (-10 to 80) |
Terminal Shape |
Screw tightening terminal (conduit size G1 / 2) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10-80 (no icing) |
