| Type | General Type (Standard Type) |
| Country of Origin | JAPAN |

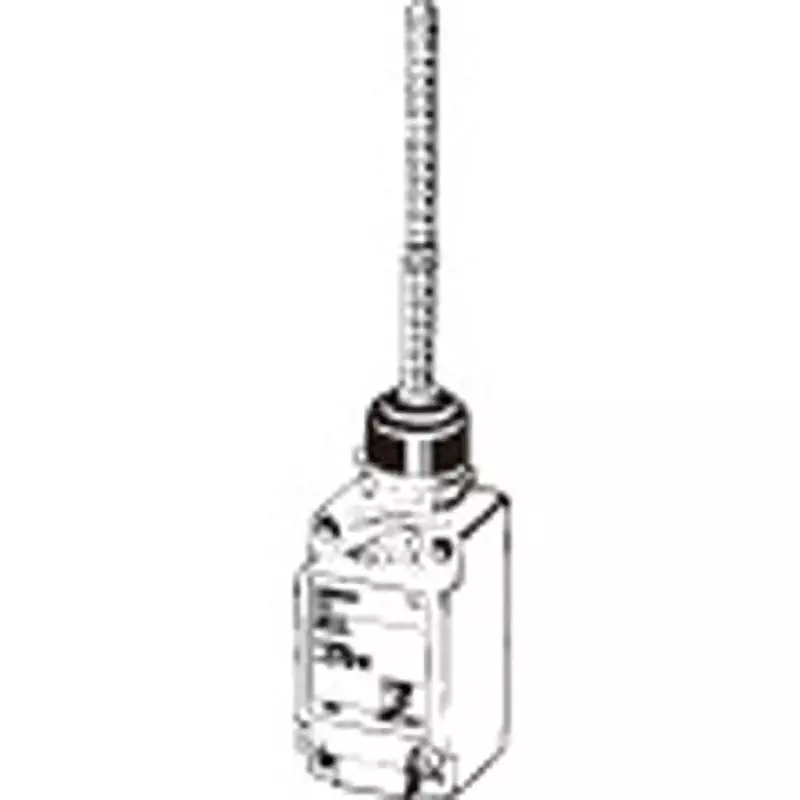

| Type of Product | 2-Circuit Limit Switches WL-N / WLG |
| Insulation Resistance | 100 or more (with DC500V mega) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
General Type (Standard Type) |
Country of Origin |
JAPAN |
Type of Product |
2-Circuit Limit Switches WL-N / WLG |
Insulation Resistance |
100 or more (with DC500V mega) |
Protection Class |
IP67 |
Switch Type |
General built-in switch |
Actuator Type |
Coil spring (spring diameter ?4.8) |
Contact Resistance |
25 or less (initial value, built-in switch only) |
Model No |
WLNJ-30TSLD-N |
Monotaro ID |
66529812 |
Mass (g) |
Approximately 255 (for type WLCA2-N) |
Rated Frequency (Hz) |
50/60 |
Rated Insulation Voltage (V) |
(Ui)250(EN60947-5-1) |
Load Connection |
General load / micro load shared |
Terminal Shape |
Screw tightening terminal (conduit size G1 / 2) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10-80 (no icing) |
