Ships within 25 days
Actuator Type
Model No
Environmental Protection
View
View
View
View
| Type | Environmentally Resistant Type (Standard Type) |
| Country of Origin | JAPAN |

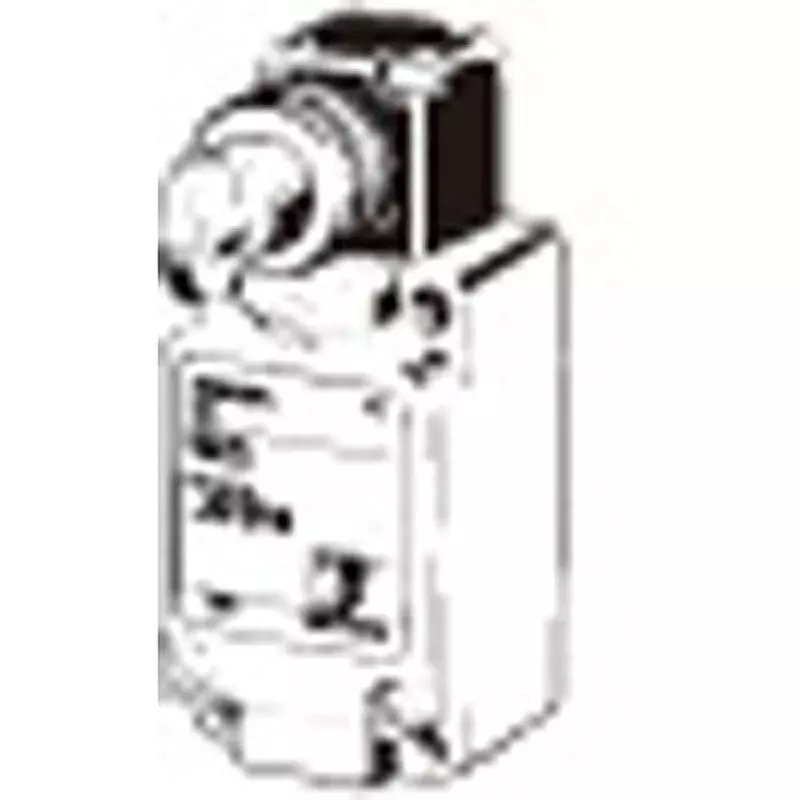

| Type of Product | 2-Circuit Limit Switch |
| Insulation Resistance | 100 or More (with 500 V DC Mega) |
Type |
Environmentally Resistant Type (Standard Type) |
Country of Origin |
JAPAN |
Type of Product |
2-Circuit Limit Switch |
Insulation Resistance |
100 or More (with 500 V DC Mega) |
Protection Class |
IP67 |
Switch Type |
1A1B Contact Type |
Actuator Type |
Side Roller Blanker |
Contact Resistance |
25 mΩ or Less (Initial Value, Built-In Switch Only) |
Model No |
WLSD2-TC-N |
Operation Ambient Temperature |
-40 To 40°C (But Do Not Freeze) |
Ambient Humidity to Use |
35-95% RH |
Monotaro ID |
66530835 |
Mass (g) |
Approx. 250 g (for WLCL-TH-N) |
Rated Frequency (Hz) |
50/60 Hz |
Operation Indicator Lamp |
None |
Environmental Protection |
Cold Resistant Type |
Hysteresis Distance |
Reference Value: MD (Max): 1 mm |
Import Country |
Direct Import from Japan |
Temperature Range |
Cold Resistant Type (-40~40°C) |
Terminal Shape |
Screw Tightening Terminal (Conduit Size G1 / 2) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
