Ships within 25 days
Model No
View
View
View
View
| Type | Compact Limit Switch |
| Country of Origin | JAPAN |
| Shape | General-purpose vertical type |
| Type of Product | Limit Switch |
Type |
Compact Limit Switch |
Country of Origin |
JAPAN |
Shape |
General-purpose vertical type |
Type of Product |
Limit Switch |
Insulation Resistance |
100 or more (with DC500V mega) |
Protection Class |
IP67 |
Actuator Type |
Variable Roller Lever Type |
Model No |

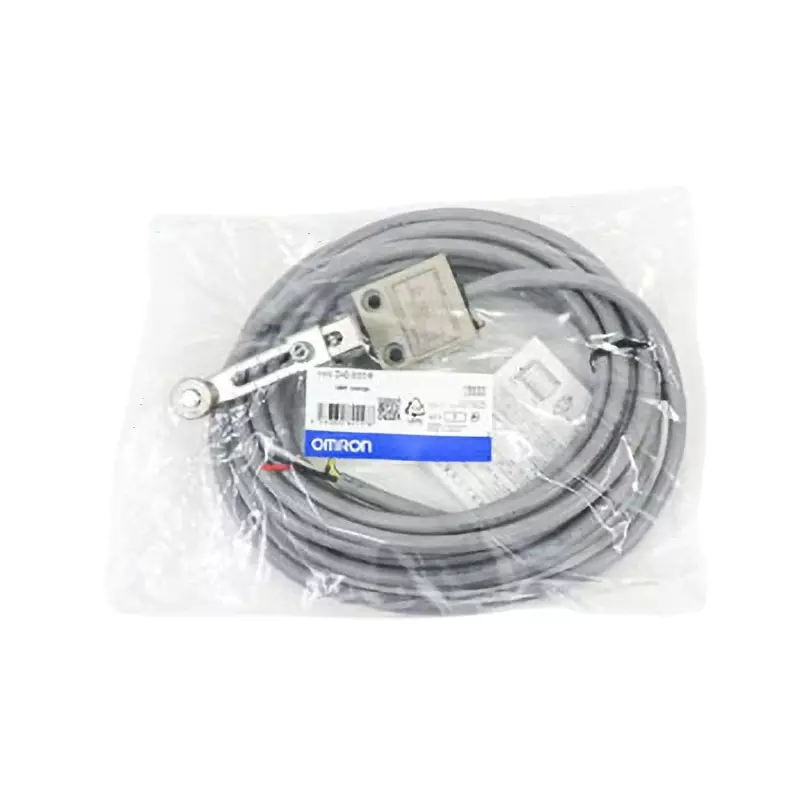

D4C-3327-P |
Structure |
Weatherproof type |
Monotaro ID |
66460467 |
Withstand Voltage |
Between Terminals Of The Same Polarity: Ac1000 (50/60 Hz), Between Live Metal Parts And Earth: Ac1500 (50/60 Hz) [Uimp 2.5Kv (En60947-5-1)], Between Each Terminal And Non-Live Metal Parts: Ac1500 (50/60 Hz) [Uimp 2.5Kv (En60947-5-1)] |
Contact Configuration |
1C |
Mass (g) |
Approx. 540 (with D4C-1202 / VCTF5m) |
Rated Frequency (Hz) |
50/60 |
Cable Length (m) |
5 (VCTF oil-resistant cord) |
Electrical ratings |
DC30V 4A (with LED indicator) |
Rated Insulation Voltage (V) |
(Ui)300(EN60947-5-1) |
Cable |
VCTF Oil-Resistant Cable, 4 Cores |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 70 (no icing) |
Category |
Limit Switches |
