Ships within 25 days
Operation Type
Actuator Type
Model No
View
View
View
View
| Type | 2 Conduit Types |
| Country of Origin | JAPAN |

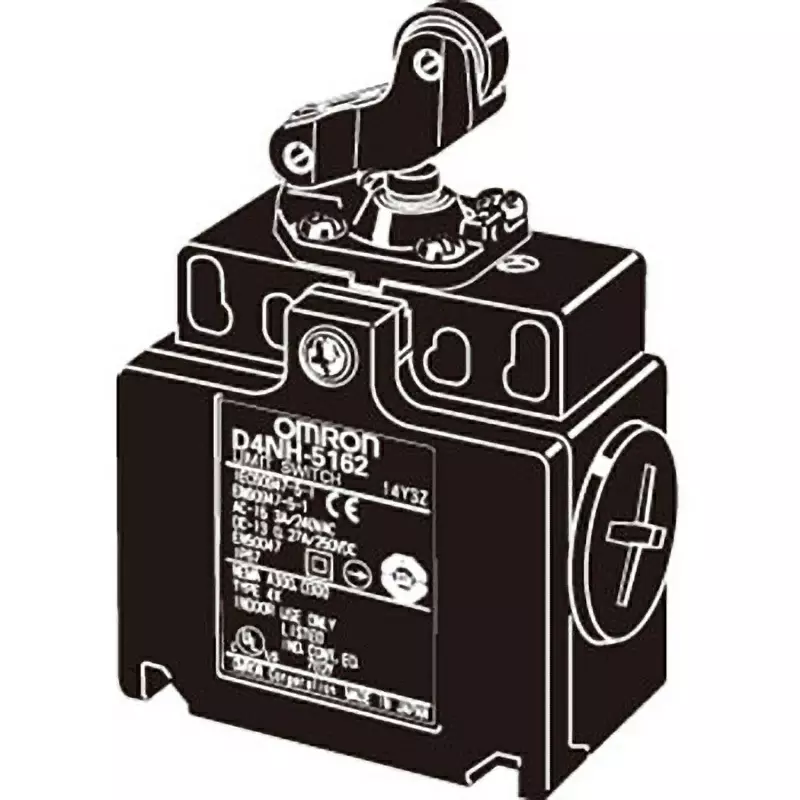

| Type of Product | Safety Limit Switch |
| Mechanical Durability | 15 million times or more |
Type |
2 Conduit Types |
Country of Origin |
JAPAN |
Type of Product |
Safety Limit Switch |
Mechanical Durability |
15 million times or more |
Shock Resistance |
1000 m/s² |
Allowable Operating Speed |
1 to 500 mm / s (D4N-1120) |
Insulation Resistance |
over 100 |
Protection Class |
IP67(EN60947-5-1) |
Electrical Durability |
500,000 times or more (AC 250 V 3 Amp, resistive load), 300,000 times or more (AC 250 V 10 Amp, resistive load) |
Actuator Type |
1-way roller / arm lever type (horizontal operation) |
Contact Resistance |
25 or less |
Model No |
D4N-8162 |
Operation Ambient Temperature |
-30 to 70 (but no freezing) |
Ambient Humidity to Use |
95% RH or less |
Monotaro ID |
46517466 |
Contact Configuration |
1NC/1NO |
Electric Shock Protection Class |
Class II (double insulation) |
Rated Frequency (Hz) |
50/60 Hz |
Rated Insulation Voltage (V) |
(Ui) 300 V |
Operation Type |
Snap action |
Rated Impulse Withstand Voltage (kV) |
2.5 Kv |
Minimum Applicable Load |
DC 5 V 1 mA resistance load (N level reference value) |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
300 m/s² |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Vibration Resistance (Malfunction) |
10-55 Hz 0.75 mm Single Amplitude |
