Ships within 25 days
Terminal Shape
Switch Type
Model No
View
View
View
View
| Type | General Type (Standard Type) |
| Country of Origin | JAPAN |
| Shape | General-purpose vertical type |

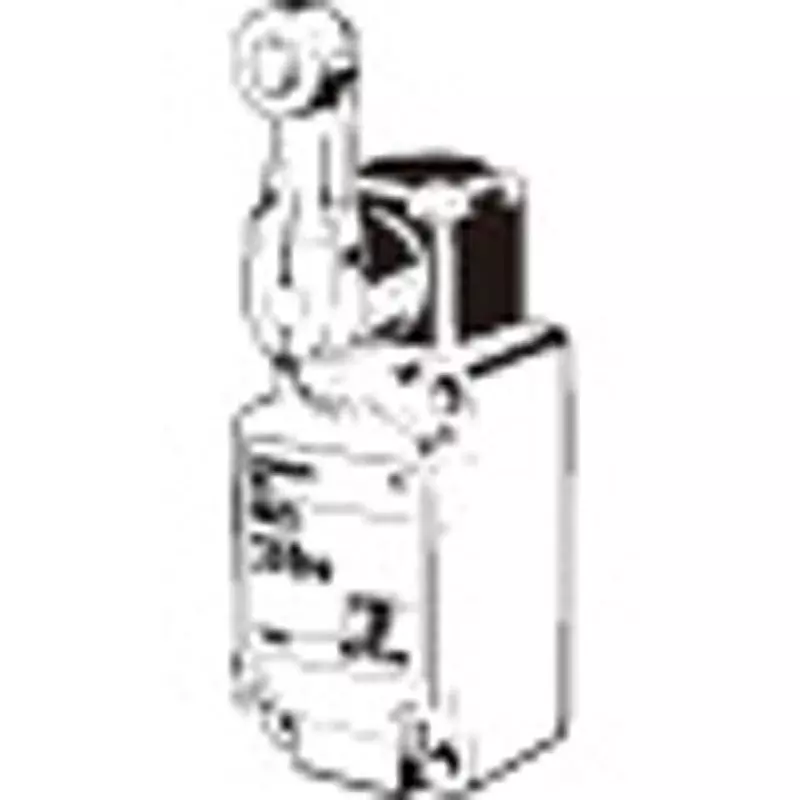

| Type of Product | 2-Circuit Limit Switches WL-N / WLG |
Type |
General Type (Standard Type) |
Country of Origin |
JAPAN |
Shape |
General-purpose vertical type |
Type of Product |
2-Circuit Limit Switches WL-N / WLG |
Protection Class |
IP67 |
Switch Type |
General built-in switch 1a1b contact type |
Lever Type |
Lever short (R38) |
Actuator Type |
Roller lever (R38mm) |
Model No |
WLCA2-LDK13A-N |
Monotaro ID |
66525558 |
Withstand Voltage |
Between terminals of the same pole: AC600V + 50 / 60Hz + 1min, between each terminal and ground: AC1500V + 50 / 60Hz + 1min, between each terminal and non-charged metal part: AC1500V + 50 / 60Hz + 1min |
Mass (g) |
Approximately 255 (for type WLCA2-N) |
Rated Frequency (Hz) |
50/60 |
Terminal Screw |
4-M3.5 |
Wiring Connections |
NO only |
Import Country |
Direct Import from Japan |
Terminal Shape |
Direct connector type |
Power Source |
AC |
Connector Shape |
Screw type (M12) |
Rated Working Voltage |
AC |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
