Chat
Ships within 25 days
Actuator Type
Model No
View
View
View
View
| Type | General Type (Standard Type) |
| Country of Origin | JAPAN |

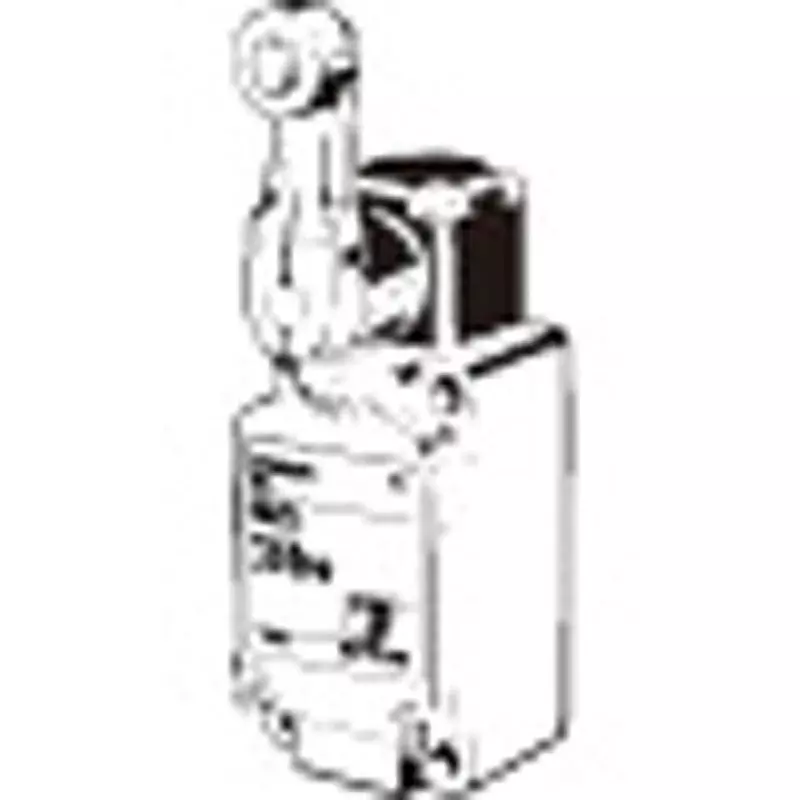

| Type of Product | General Limit WL-N Switch |
| Mechanical Durability | 15 million times or more |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
General Type (Standard Type) |
Country of Origin |
JAPAN |
Type of Product |
General Limit WL-N Switch |
Mechanical Durability |
15 million times or more |
Allowable Operating Speed |
1mm ~ 1m / s (for type WLCA2-N) |
Insulation Resistance |
100 or more (with DC500V mega) |
Protection Class |
IP67 |
Actuator Type |
Roller lever (R38mm) |
Contact Resistance |
25 or less (initial value, built-in switch only) |
Model No |
WLCA2-TSLD-N |
Monotaro ID |
66525935 |
Mass (g) |
Approximately 255 (for type WLCA2-N) |
Electric Shock Protection Class |
Class I |
Rated Frequency (Hz) |
50/60 |
Rated Insulation Voltage (V) |
(Ui)250(EN60947-5-1) |
Terminal Shape |
Screw tightening terminal (conduit size G1 / 2) |
Rated Operating Current (A) |
2 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10-80 (no icing) |
