| Type | Standard type |
| Country of Origin | Japan |
| Shape | General-purpose vertical type |

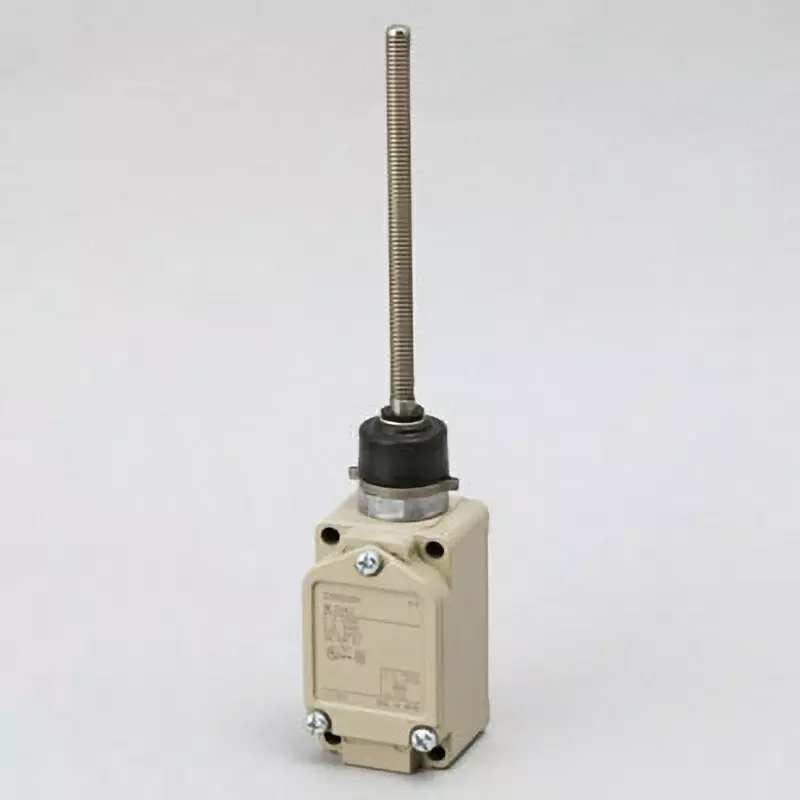

| Type of Product | 2-Circuit Limit Switch |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Standard type |
Country of Origin |
Japan |
Shape |
General-purpose vertical type |
Type of Product |
2-Circuit Limit Switch |
Protection Class |
IP67 |
Switch Type |
General built-in switch 1a1b contact type |
Actuator Type |
Flexible rod type (coil spring type) |
Service Life |
General form |
Monotaro ID |
35460512 |
Withstand Voltage |
Between terminals of the same pole: AC1000V + 50 / 60Hz + 1min, between each terminal and ground: AC2200V + 50 / 60Hz + 1min / Uimp + 2.5kV, between each terminal and non-charged metal part: AC2200V + 50 / 60Hz + 1min / Uimp + 2.5kV |
Mass (g) |
Approx. 275 (for WLCA2) |
Rated Frequency (Hz) |
50/60 |
Electrical ratings |
Micro load type |
Rated Insulation Voltage (V) |
(Ui)250(EN60947-5-1) |
Terminal Screw |
4-M4 |
Energizing Current (A) |
0.1 |
Type of Sign |
Front mounting, rear mounting |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10-80 (no icing) |
Manufacturer Part Number |
WL01NJ |
Contact Resistance (ohm) |
50 or less (initial value, built-in switch alone) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
