Ships within 25 days
Cable Length (m)
Model No
Electrical ratings
View
View
View
View

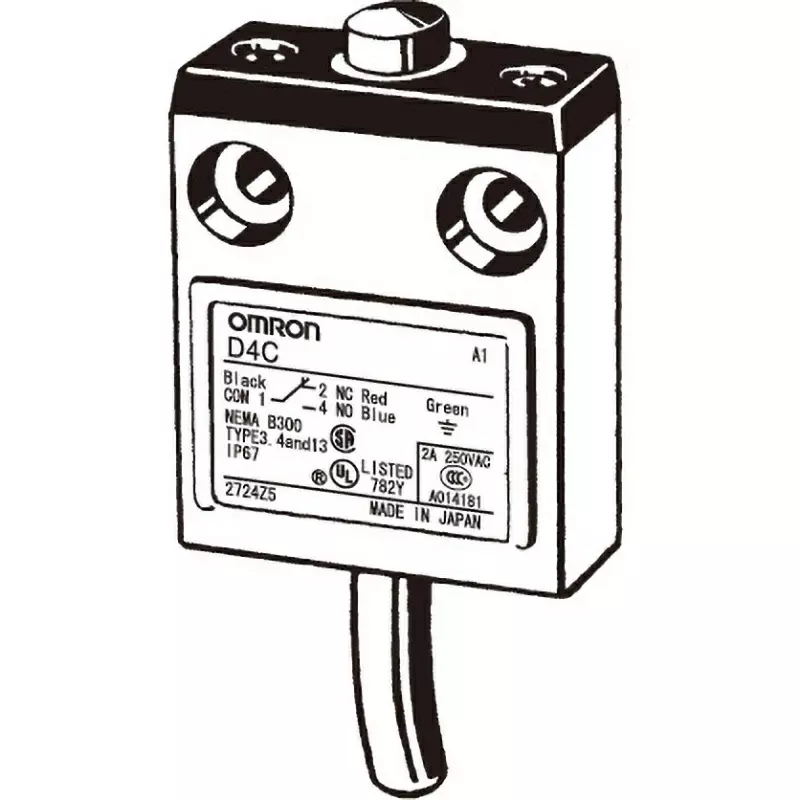

| Type | Compact Limit Switch |
| Country of Origin | JAPAN |
| Shape | General-purpose vertical type |
| Type of Product | Limit Switch |
Type |
Compact Limit Switch |
Country of Origin |
JAPAN |
Shape |
General-purpose vertical type |
Type of Product |
Limit Switch |
Insulation Resistance |
100 or more (with DC500V mega) |
Protection Class |
IP67 |
Actuator Type |
Pin Plunger Type |
Model No |
D4C-3001-DK1EJ03 |
Ambient Humidity to Use |
35-95% RH or less |
Monotaro ID |
66459995 |
Withstand Voltage |
Between Terminals Of The Same Polarity: Ac1000 (50/60 Hz), Between Live Metal Parts And Earth: Ac1500 (50/60 Hz) [Uimp 2.5Kv (En60947-5-1)], Between Each Terminal And Non-Live Metal Parts: Ac1500 (50/60 Hz) [Uimp 2.5Kv (En60947-5-1)] |
Contact Configuration |
1C |
Rated Frequency (Hz) |
50/60 |
Cable Length (m) |
0.3 |
Electrical ratings |
DC30 V/1A(with operation indicator light)) |
Rated Insulation Voltage (V) |
(Ui)250(EN60947-5-1) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 70 (no icing) |
Shock Resistance (m/s²) |
1000 m/s² or more |
Category |
Limit Switches |
