Ships within 19 days
Model No
No. of Pole
View
View
View
View
| Type of Product | D-Sub Connector Socket |
| Model No | XM3F-1520 |
| Total Insertion Force | Number of polesx3.33N or less |
| Rated Voltage (V) | AC300 |
Type of Product |
D-Sub Connector Socket |
Model No |
XM3F-1520 |
Total Insertion Force |
Number of polesx3.33N or less |
Rated Voltage (V) |
AC300 |
Monotaro ID |
39105211 |
Rated Current (A) |
3 |
No. of Pole |
15 |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Contact Material |
(Contact area) Phosphor bronze/nickel base, gold plating (0.4 μm) (Terminal area) Phosphor bronze/nickel base, tin plating (3 μm) |
Shape |
Socket |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +105℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Terminal Shape |
Dip L-Shaped Terminal (With Ferrite Core) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

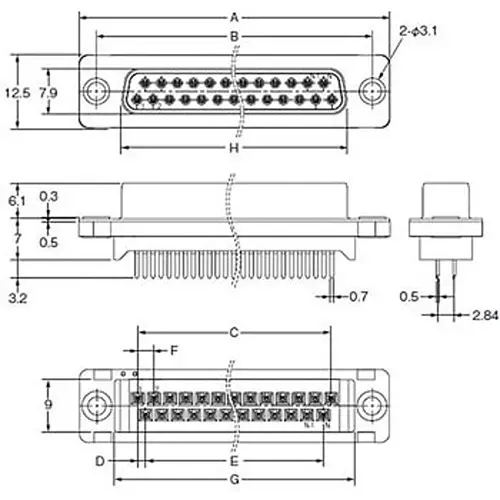

Dimension A (Φmm) |
39 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |
Dimension B (Φmm) |
33.32 |
Dimension C |
19.2 mm |
Dimension d |
1.37 mm |
Dimension F (Φmm) |
2.74 |
Dimension E (Φmm) |
16.440000000000001 |
Specifications |
Without fixture or grounding bracket |
Dimension H (Φmm) |
24.66 |
Dimension G |
27.12 mm |
