| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |

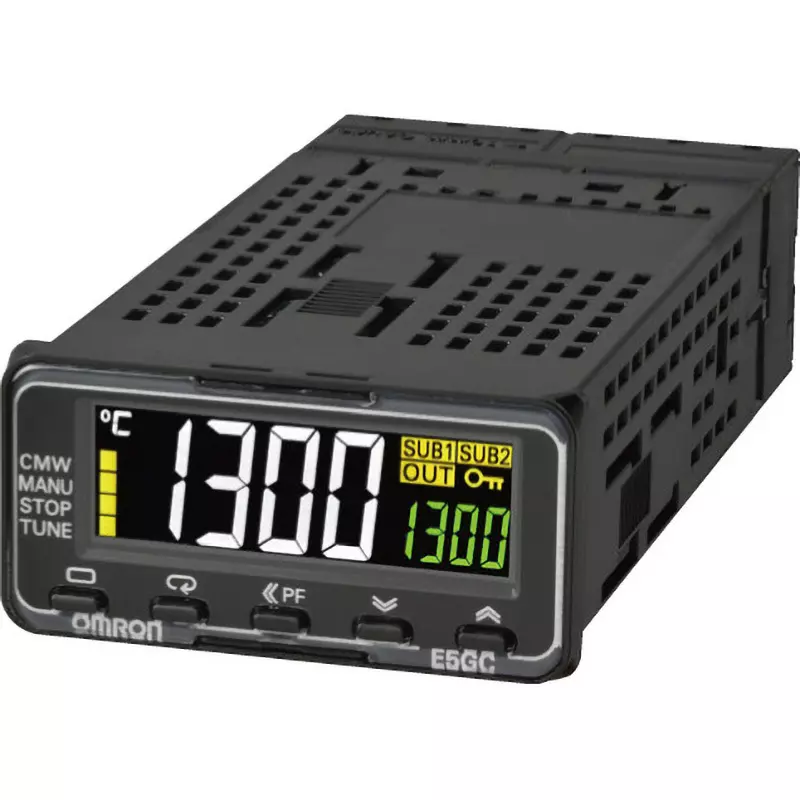

| Type of Product | Digital Temperature Controller |
| Input Type | Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
| Model No | E5GC-RX0DCM-000 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |
Type of Product |
Digital Temperature Controller |
Input Type |
Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Model No |
E5GC-RX0DCM-000 |
Control Output |
Relay Output |
Controls Type |
ON/OFF or 2° of Dreedom PID (With Auto Tuning) |
Input |
Full Multi Input |
Character Height (mm) |
PV: 10.5 mm, SV: 5 mm |
Monotaro ID |
66481957 |
No. Of Output |
None |
Mass (g) |
Body: Approx. 80 g, Installation Adapter: Approx. 4 g x 2 Pcs |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Shape |
DIN48×24 |
Input Power |
AC24 V (50/60 Hz), DC24 V |
Terminal Shape |
Screwless Clamp Terminal Block |
Country of Origin |
CHINA |
Pattern Setting |
Digital Setting with Front Keys |
Standard |
[Certification Standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean Radio Regulations (Radio Law: KC mark) (Some Models Only) |
Protection Class |
Front: IP66, Rear Case: IP20, Terminal Part: IP00 |
Operating Temperature Range |
-10 to 55°C (No Condensation or Icing) / 3 Year Warranty: -10 to 50°C (No Condensation or Icing) with Standard Single Unit Installation |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Consumption (W) |
1.8 W or less |
