Ships within 19 days
Model No
View
View
View
View
| Coil Voltage Rating (V) | DC24 |
| Mass (g) | About 35 |
| Terminal Shape | Top Mounting For The Case |
| CR Circuit | None |
Coil Voltage Rating (V) |
DC24 |
Mass (g) |
About 35 |
Terminal Shape |
Top Mounting For The Case |
CR Circuit |
None |
Operating Temperature Range |
-55 to 70℃ (no condensation or freezing) |
Contact Configuration |
2C |
Type |

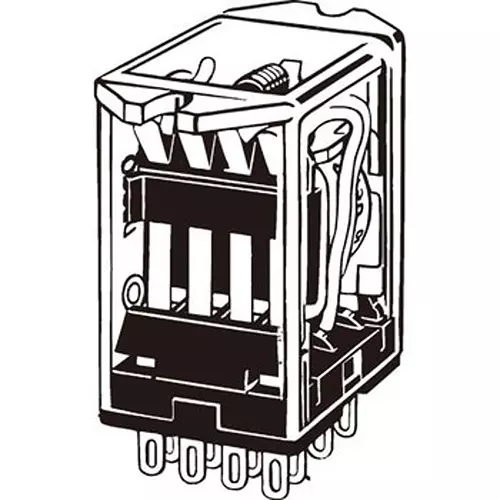

Mini Power Relay |
No. of Pole |
2 |
Power Consumption |
About 0.9 |
Monotaro ID |
46662262 |
Type of Product |
Mini Power Relay |
Model No |
MY2F-DG-DC24 |
Shock Resistance |
1000m/s² |
Series |
MY2 Series |
Classification |
Built-in diode for coil surge absorption |
Shape |
MY2F |
Protection Class |
Closed type (cased) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions |
21.5 or lessx42.4 or lessx28 or less mm |
With or Without Diode |
Included |
No. Of Pin |
8 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-55 to 60 (no freezing or condensation) |
Contact Resistance (ohm) |
50 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
100 mohm or more (measured with the DC500 V insulation resistance meter at the same location as the withstand Voltage) |
Rated Coil Voltage |
DC24 |
