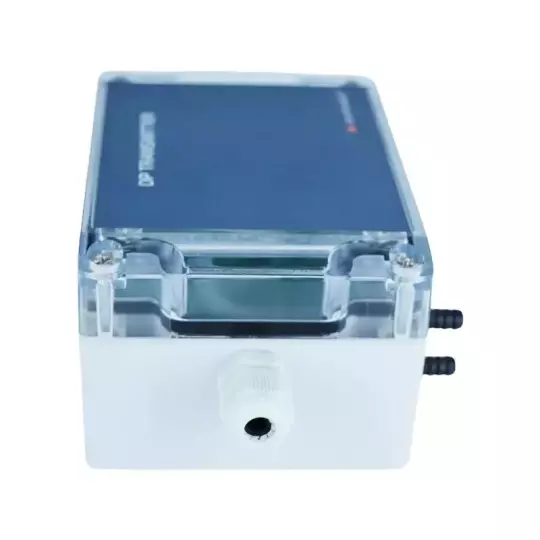

| Type of Product | Differential Pressure Transmitter |
| Accuracy | ± 0.5 % of full scale |
| Features | Measures air differential pressure with ±0.5% accuracy Jumper-selectable measuring ranges Field-selectable 4–20 mA (2-wire) / 0–10 VDC (3-wire) output Compact ABS plastic wall-mounted enclosure IP52 protection for reliable operation Fast 250 ms response time Long-term stability with minimal drift |
| Model No | AI-DPTx |
Type of Product |
Differential Pressure Transmitter |
Accuracy |
± 0.5 % of full scale |
Features |
Measures air differential pressure with ±0.5% accuracy Jumper-selectable measuring ranges Field-selectable 4–20 mA (2-wire) / 0–10 VDC (3-wire) output Compact ABS plastic wall-mounted enclosure IP52 protection for reliable operation Fast 250 ms response time Long-term stability with minimal drift |
Model No |
AI-DPTx |
Power Supply |
24 VDC +/- 10% |
Response Time |
250 ms (miliiseconds) |
Output Signal |
Field selectable 4-20 mA (2-wire)/ 0-10 VDC ( 3 Wire ) |
Dimension |
100 x 70 x 30 mm |
Enclosure |
Wall mounting type ABS plastic enclosure, IP52 rated |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
INSTRUKART HOLDING |
Stability |
Maximum <± 2% over 10 year period |
Gland Type |
PG7 cable gland entry |
Wiring Connections |
Screw Terminal Block |
Operating Conditions |
-5 to +65 °C |
Protection Circuit |
Reverse voltage protected and output limited |
Over Pressure |
+/- 10,000 Pascals (max) |
Measure Range |
0 To 100 Pa, ± 100Pa, 0 To 1250 Pa, ± 1250Pa, 0 To 250 Pa, ± 250Pa, 0 To 2500 Pa, ± 2500Pa, 0 To 500 Pa, ± 500Pa, 0 To 60 Pa, ± 60Pa |
Approvals |
CE |

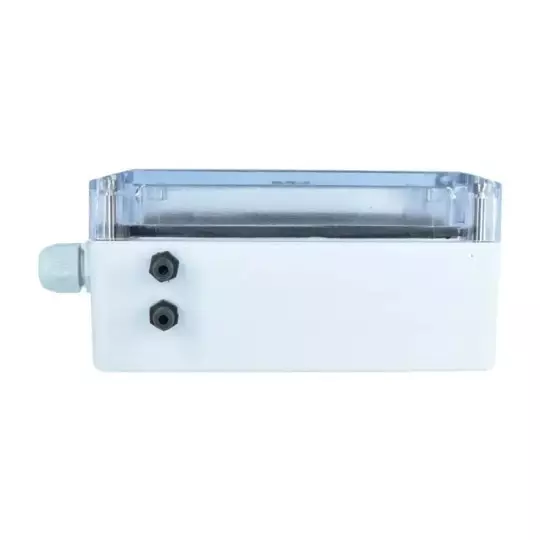

Pressure Connection |
via 2 Nos. hose nipples 5 mm at the bottom |
