Ships within 19 days
View
View
View
View
| Type of Product | Rod End |
| Model No | PHS6 |
| Thread Type | Female Right-Hand Thread Type |
| Material | Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Type of Product |
Rod End |
Model No |
PHS6 |
Thread Type |
Female Right-Hand Thread Type |
Material |
Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Country of Origin |
Japan |
Type |
PHS Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6298153 |
Mass (g) |
25 |

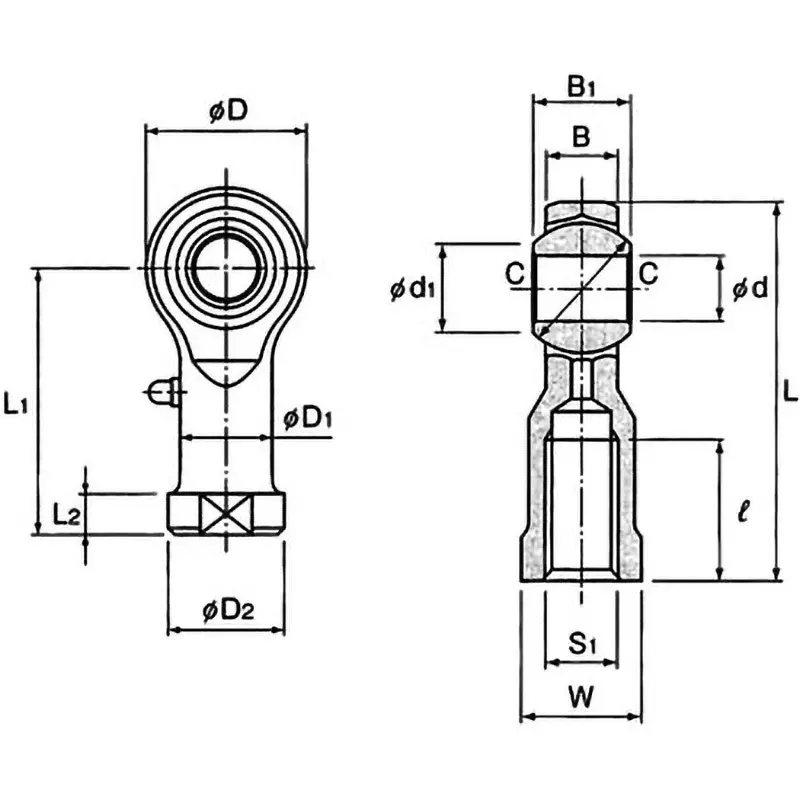

Dimension d2 (Φmm) |
11 |
Dimension d1 (Φmm) |
9 |
Dimension B (Φmm) |
6 |
Dimension L (mm) |
39 |
Dimension L1 |
30 mm |
Dimension S1 (mm) |
M6x1 |
Dimension L2 |
5 mm |
JIS Class |
JIS Class 2 |
Dimension W |
11 mm |
Dimension S |
M6x1 mm |
Width B1 (mm) |
9 |
Dimension C |
0.3 mm |
Dimension D1 (mm) |
7.7 |
Dimension d |
6 mm |
