| Inner Diameter | 30 mm |
| Width | 16 mm |
| Outer Diameter | 52 mm |

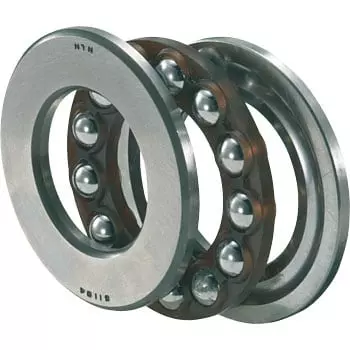

| Type of Product | Thrust Ball Bearing |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Inner Diameter |
30 mm |
Width |
16 mm |
Outer Diameter |
52 mm |
Type of Product |
Thrust Ball Bearing |
Model No |
51206 |
Country of Origin |
Japan |
Load direction |
radial |
Chamfering Size r (mm) |
0.6 (minimum) |
Outer ring type |
flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Thrust ball bearing |
Body Material |
High carbon chromium bearing steel |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
29300 |
Basic static load rating Coa (N) |
58000 |
Monotaro ID |
347216 |
Dimension d1 (Φmm) |
52 (max) |
Grease Limiting Speed (RPM) |
3400 |
Oil Limiting Speed (RPM) |
4900 |
Reference mass (g) |
139 |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corp. |
