| Inner Diameter | 17 mm |
| Width | 12 mm |
| Outer Diameter | 35 mm |

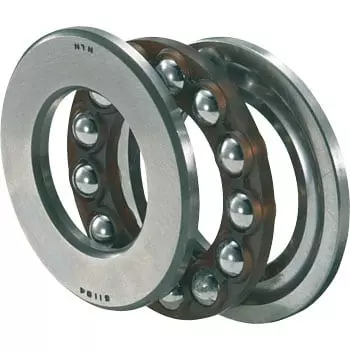

| Type of Product | Thrust Ball Bearing |
Inner Diameter |
17 mm |
Width |
12 mm |
Outer Diameter |
35 mm |
Type of Product |
Thrust Ball Bearing |
Model No |
51203 |
Country of Origin |
Japan |
Load direction |
radial |
Chamfering Size r (mm) |
0.6 (minimum) |
Outer ring type |
flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Thrust ball bearing |
Body Material |
High carbon chromium bearing steel |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
17200 |
Basic static load rating Coa (N) |
27300 |
Monotaro ID |
347182 |
Dimension d1 (Φmm) |
35 (max) |
Grease Limiting Speed (RPM) |
4800 |
Oil Limiting Speed (RPM) |
6800 |
Reference mass (g) |
54 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corp. |
