Showing 40 out of 45 products
Application : Industrial Control System
Type of Product : Single Output Analog Signal Converter
Response Time : < 15 ms
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 15~35°C, 95% RH Non-Condensing
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span Adjustments On Front
Input Impedance : 10 V : 100 K Ohm
Overload Protection : Output short circuit current 30 mA max
Input Type : Current ( mA DC)
Auxiliary : 24 V DC
Slim Size : 22.5 mm
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V03-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 230 V AC/DC
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V14-A-A-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Type of Product : Single Output Analog Signal Converter
Response Time : < 15 ms
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 15~35°C, 95% RH Non-Condensing
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span Adjustments On Front
Input Impedance : 10 V : 100 K Ohm
Overload Protection : Output short circuit current 30 mA max
Input Type : Thermocouple J Type
Auxiliary : 24 V DC
Slim Size : 22.5 mm
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V16-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V11-A-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V11-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Type of Product : Single Output Analog Signal Converter
Response Time : < 15 ms
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 15~35°C, 95% RH Non-Condensing
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span Adjustments On Front
Input Impedance : 10 V : 100 K Ohm
Overload Protection : Output short circuit current 30 mA max
Input Type : Thermocouple K Type
Auxiliary : 24 V DC
Slim Size : 22.5 mm
Application : Industrial Control System
Type of Product : Single Output Analog Signal Converter
Country of Origin : India
Response Time : < 15 ms
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span Adjustments On Front
Input Impedance : 10 V : 100 K Ohm
Overload Protection : Output short circuit current 30 mA max
Input Type : DC Voltage
Auxiliary : 24 V DC
Slim Size : 22.5 mm
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V12-A-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V11-B-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V15-A-A-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-A-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Type of Product : Single Output Analog Signal Converter
Response Time : < 15 ms
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 15~35°C, 95% RH Non-Condensing
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span Adjustments On Front
Input Impedance : 10 V : 100 K Ohm
Overload Protection : Output short circuit current 30 mA max
Input Type : RTD – PT100, 2 or 3 Wire
Auxiliary : 24 V DC
Slim Size : 22.5 mm
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 24 V AC/DC
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V15-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V14-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V17-A-A-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-A-A-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V11-B-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Dual Output Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 230 V AC/DC
Input Type : Thermocouple K Type
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Dual Output Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C
Auxiliary Range : 18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100 K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 24 V AC/DC
Input Type : RTD – PT100, 2 or 3 Wire
Humidity : 95% RH Non-Condensing
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Dual Output Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Auxiliary Range : 90 ~ 270 V AC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100 K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 230 V AC/DC
Input Type : RTD – PT100, 2 or 3 Wire
Humidity : 95% RH Non-Condensing
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V11-A-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V03-B-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Dual Output Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 230 V AC/DC
Input Type : Thermocouple J Type
Application : Industrial Control System
Frequency : 47 ~ 63 Hz
Type of Product : Dual Output Analog Signal Converter
Weight : 240 g
Maximum Input Current : 30 mA
Mounting Type : 35 mm DIN rail
Maximum Input Voltage : 100 V
Power Indicator : Power on LED
Auxiliary Ripple : Less than 1% of Span
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Adjustment Type : Zero & Span On Front For Each Output
Features : 4 Point Isolation of 2 KV AC, Low Ripple & Noise, Economical, High Reliability, Compact
Output Specifications : 0-10 V DC, 20 mA maximum
4-20 mA, 500 Load maximum
0-5 V DC, 20 mA maximum
Input Impedance : 10 V : 100K ohm & 20 mA : 10 ohm
Overload Protection : Output short circuit current 30 mA max
Nominal Voltage : 24 V AC/DC
Input Type : Thermocouple K Type
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V17-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-B-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-A-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V12-B-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V12-A-A-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V03-B-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V03-A-B-24V
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Auxiliary Ripple : 1.8 V P-P
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 16 ~ 36 V AC/18 ~ 36 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V16-A-A-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V13-B-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter
Model No : SC2-V12-B-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Application : Industrial Control System
Series : SC2
Type of Product : Dual Output Signal Converter

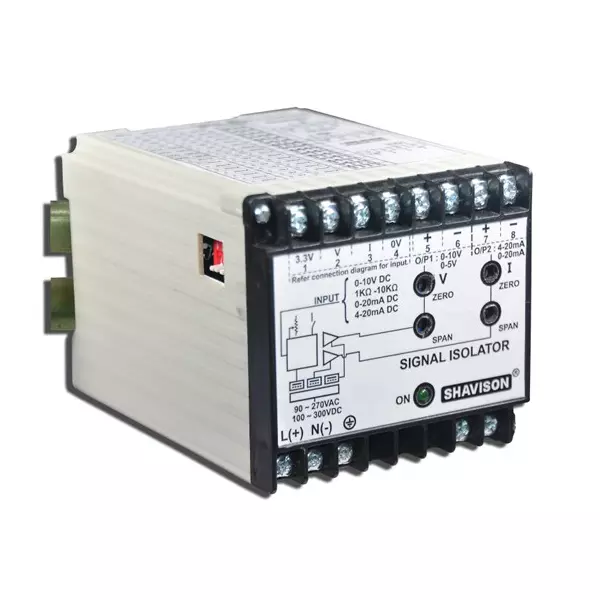

Model No : SC2-V12-A-B-U
Mounting Type : 35 mm DIN rail
Power Indicator : Green LED on Front
Auxiliary Power : 6 W / 6 VA max.
Range Selection : Using DIP Switches
Operating Ambient Temperature : 0~50°C, 95% RH Non-Condensing
Auxiliary Range : 90 ~ 270 V AC/100 ~ 300 V DC
Storage Ambient Temperature : -20°C to 85°C
Maximum Rated Input : 5% of full scale in selected input range
Page 1 of 2 results
| Product Name | Specifications | Expected Price | Dispatch Time | Discount |
|---|---|---|---|---|
| Shavison Dual Output Signal Converter 0-60 mV Input Voltage 0-10V / 0-5V Output 1, 4-20 mA / 0-20 mA Output 2, SC2-V03-A-B-24V | Auxiliary Power 6 W / 6 VA max. | Auxiliary Range 16 ~ 36 V AC/18 ~ 36 V DC | ₹2,770 | 16 days | -- |
| Shavison Single Output Analog Signal Converter 22.5 mm Slim 0 - 10 V DC Output 4 - 20 mA Input, AS746-153 | Adjustment Type Zero & Span Adjustments On Front | Auxiliary 24 V DC | ₹1,690 | 4 days | -- |
Subscribe to Newsletter
Sign up to get exclusive offers from our favorite brands and to be well up in the news
