| Application | Industrial Control System |

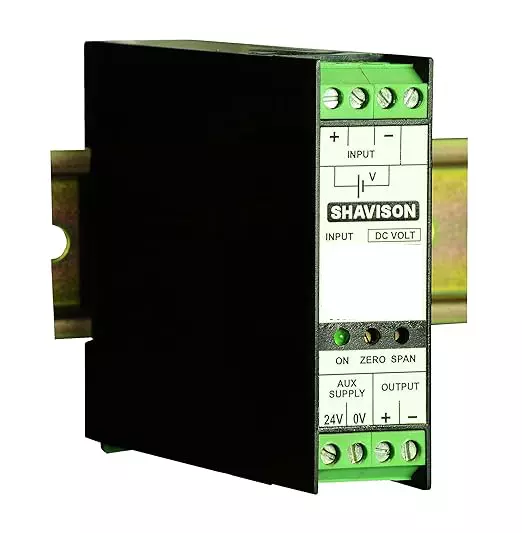

| Type of Product | Single Output Analog Signal Converter |
| Model No | AS746-320 |
| Country of Origin | India |
Application |
Industrial Control System |
Type of Product |
Single Output Analog Signal Converter |
Model No |
AS746-320 |
Country of Origin |
India |
Response Time |
< 15 ms |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
Maximum Input Voltage |
100 V |
Power Indicator |
Power on LED |
Auxiliary Ripple |
Less than 1% of Span |
Operating Ambient Temperature |
15~35°C, 95% RH Non-Condensing |
Storage Ambient Temperature |
-20°C to 85°C |
Adjustment Type |
Zero & Span Adjustments On Front |
Output Specifications |
4 - 20 mA |
Input Impedance |
10 V : 100 K Ohm |
Overload Protection |
Output short circuit current 30 mA max |
Input Temperature |
0 to 800° C |
Input Type |
RTD – PT100, 2 or 3 Wire |
Auxiliary |
24 V DC |
Slim Size |
22.5 mm |
