| Country of Origin | JAPAN |
| Shape | General-Purpose Vertical Type |

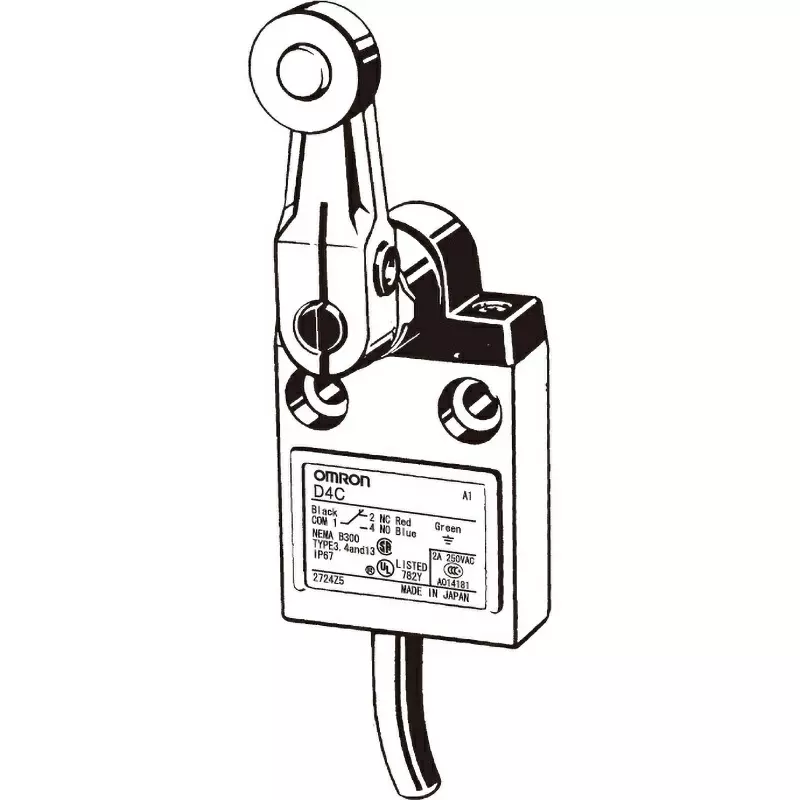

| Type of Product | Compact Limit Switch |
| Shock Resistance | 1000 m/s² or more |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
JAPAN |
Shape |
General-Purpose Vertical Type |
Type of Product |
Compact Limit Switch |
Shock Resistance |
1000 m/s² or more |
Insulation Resistance |
100 mΩ or more (with DC500 V mega) |
Protection Class |
IP67 |
Actuator Type |
Roller Lever Type (High Sensitivity Type) |
Model No |
D4C-1624 |
Operation Ambient Temperature |
-10 to 70 °C (no icing) |
Ambient Humidity to Use |
35-95% RH or less |
Monotaro ID |
46520853 |
Withstand Voltage |
(Between terminals of the same polarity) AC1000 V 50/60 Hz 1 min, (Between live metal parts and earth) AC1500 V 50/60 Hz 1 min/Uimp 2.5 kV(EN60947-5-1), (Between each terminal and non-live metal parts) AC1500 V 50/60 Hz 1 min/Uimp 2.5 kV (EN60947-5-1) |
Contact Configuration |
1c |
Rated Frequency (Hz) |
50/60 |
Cable Length (m) |
3 (SJT (O)) |
Electrical ratings |
AC250 V 5 A/DC30 V 4 A |
Rated Insulation Voltage (V) |
(Ui)300(EN60947-5-1) |
Cord |
SJT(O) 3 m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
