| Country of Origin | JAPAN |
| Type of Product | Safety Limit Switch |
| Mechanical Durability | 10 million times or more |
| Shock Resistance | 1000 m/s² or more |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
JAPAN |
Type of Product |
Safety Limit Switch |
Mechanical Durability |
10 million times or more |
Shock Resistance |
1000 m/s² or more |
Allowable Operating Speed |
1 mm~0.5 m/s |
Insulation Resistance |
100 mΩ or more (at 500 VDC) between homopolar and heteropolar terminals, between charged metal parts and ground, between each terminal and non-charged metal parts |
Protection Class |
IP67(EN60947-5-1) |
Electrical Durability |
1 million times or more (4 mA /24 V DC x 4 circuits, resistive load) |
Actuator Type |
Roller lever (metal lever, resin roller) |
Contact Resistance |
500 or less |
Model No |

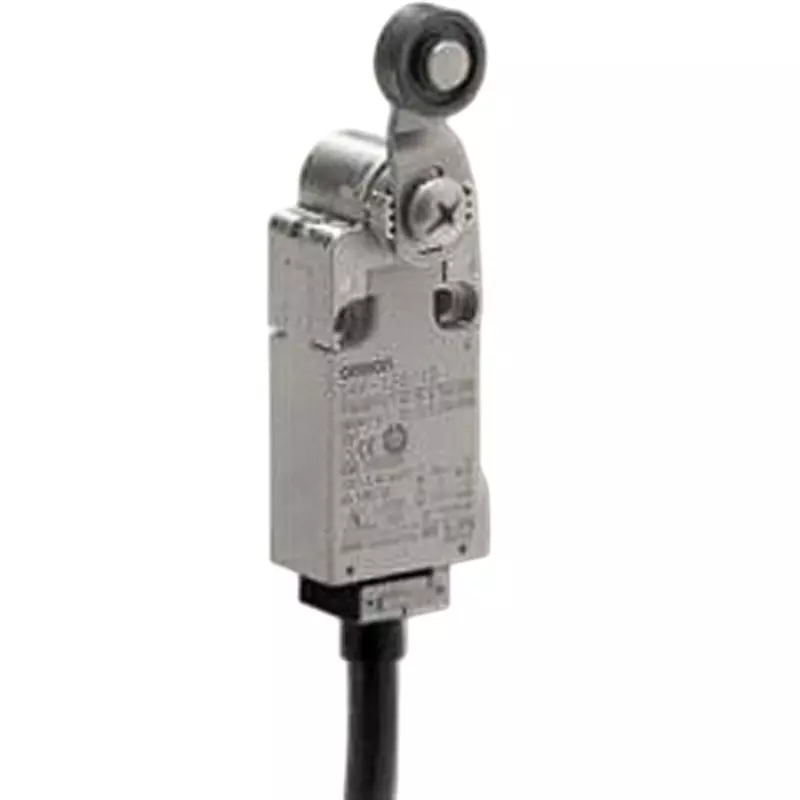

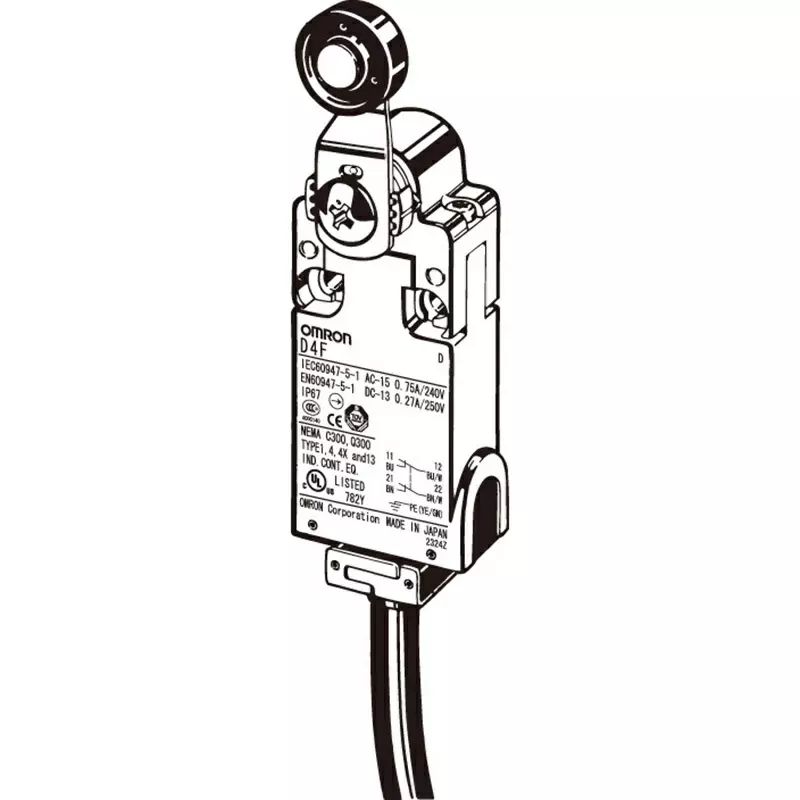

D4F-320-3D |
Operation Ambient Temperature |
-30 to 70 (but no freezing) |
Ambient Humidity to Use |
95% RH or less |
Monotaro ID |
46518762 |
Contact Configuration |
2NC/2NO |
Electric Shock Protection Class |
Class I (with ground wire) |
Rated Frequency (Hz) |
50/60 Hz |
Cable Length (m) |
3 m |
Rated Insulation Voltage (V) |
(Ui) 250 V |
Operation Type |
Slow action |
Rated Impulse Withstand Voltage (kV) |
2.5 Kv |
Minimum Applicable Load |
24 VDC, 4 mA resistance load, 4 circuits (N level reference value) |
Shock Resistance (Malfunction) |
300 m/s² or more |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Vibration Resistance (Malfunction) |
10-55 Hz 0.75 mm Single Amplitude |
